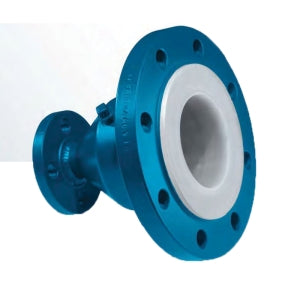

Baum America 140730 4 x 3 150 FS PTFE Lined Conc Reducer

Product Description

The BAUM AMERICA 140730 concentric flanged reducers provide a solution for changes of the nominal pipe size. The reducers are lined with PTFE, PFA or PP depending on the nominal width. It is made of forged steel material with flanged connection type and nominal size of 4 X 3 IN.

• Earthing stud/lug
• Vent hole extension
• Lined with PTFE, PFA or PP

Product Highlights

Concentric flanged reducers for changes of the nominal pipe size with PTFE, PFA or PP lining.

Product Information

Standard Information

• Brand: BAUM AMERICA
• Manufacturer Part Number: 140730

Technical Specifications

• Item Name: Concentric Reducer
• Type: PTFE Lined
• Pressure Class: Class 150
• Nominal Size: 4 X 3 IN
• Connection Type: Flanged
• Material: Forged Steel
• Material Standard: ASTM A234 Grade WPB, ASTM D638, ASTM F1545-15a
• Length: 7.01 IN
• Maximum Pressure: 250 PSIG
• Temperature Rating: 100 DEG F
• Industry Standards: ISO 9001:2008 Certified, ASME B16.5
