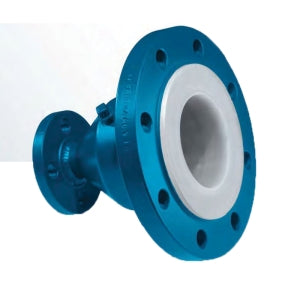

Baum America 120710 2 x 1 150 FS PFA Lined Conc Reducer

Product Description

The BAUM AMERICA 120710 concentric flanged reducer provides a universal solution for changes in nominal pipe size. Constructed from forged steel to ASTM A234 Grade WPB, ASTM D638, and ASTM F1545-15a standards, it features PFA lining and a flanged connection. This reducer is suitable for applications requiring a Class 150 pressure rating.

• Earthing stud/lug
• Vent hole extension
• Lined with PTFE, PFA or PP

Product Highlights

Concentric flanged reducers accommodate changes in nominal pipe size with PFA lining and flanged connections.

Product Information

Standard Information

• Brand: BAUM AMERICA
• Manufacturer Part Number: 120710

Technical Specifications

• Item Name: Concentric Reducer
• Type: PFA Lined
• Pressure Class: Class 150
• Nominal Size: 2 X 1 IN
• Connection Type: Flanged
• Material: Forged Steel
• Material Standard: ASTM A234 Grade WPB, ASTM D638, ASTM F1545-15a
• Length: 5 IN
• Maximum Pressure: 250 PSIG
• Temperature Rating: 100 DEG F
• Industry Standards: ISO 9001:2008 Certified, ASME B16.5
