Baum America 115710 1-1/2 x 1 150 FS PFA Lined Conc Reducer

Product Description

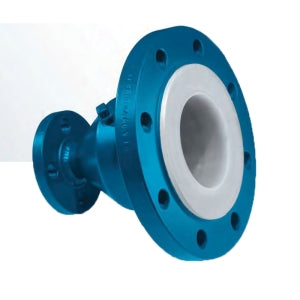

The BAUM AMERICA 115710 concentric flanged reducers provide a universal solution for changes in nominal pipe size. These reducers are lined with PFA and suitable for various applications. They are constructed from forged steel to ASTM A234 Grade WPB, ASTM D638, and ASTM F1545-15a standards.

• Earthing stud/lug
• Vent hole extension
• PFA Lined

Product Highlights

Concentric flanged reducers for nominal pipe size changes, featuring earthing stud/lug and vent hole extension.

Product Information

Standard Information

• Brand: BAUM AMERICA
• Manufacturer Part Number: 115710

Technical Specifications

• Item Name: Concentric Reducer
• Type: PFA Lined
• Pressure Class: Class 150
• Nominal Size: 1-1/2 X 1 IN
• Connection Type: Flanged
• Material: Forged Steel
• Material Standard: ASTM A234 Grade WPB, ASTM D638, ASTM F1545-15a
• Length: 4.49 IN
• Maximum Pressure: 250 PSIG
• Temperature Rating: 100 DEG F
• Industry Standards: ISO 9001:2008 Certified, ASME B16.5
