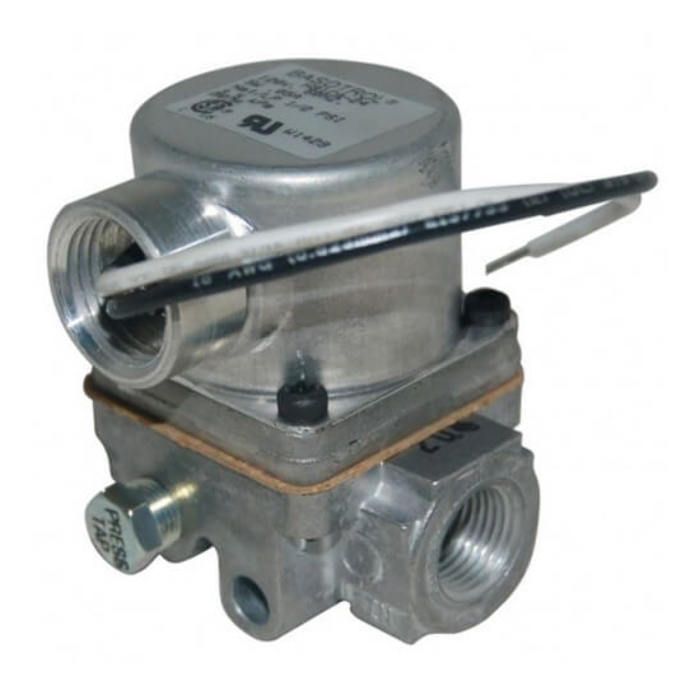

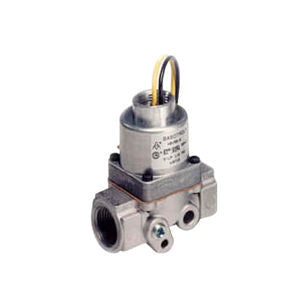

BASO H91RG1C Automatic Gas Valve 24 VAC 3/4 Inch NPT 325000 BTU/hr H91RG1C

Product Description

The BASO H91RG1C is an automatic gas valve designed for both natural and propane gas applications. This unit operates at 25 VAC with a maximum capacity of 325,000 BTU per hour. It features a three-quarter inch NPT connection and includes two one-eighth inch NPT pilot taps along with a one-eighth inch pressure tap. This valve is effective in systems that require accurate gas flow control.

• Easy installation with three-quarter inch NPT connections
• Rated for up to 325,000 BTU/hr capacity
• Compatible with natural gas and propane

Product Highlights

This valve provides reliable and safe operation in gas systems while ensuring compliance with industry standards.

Product Information

Standard Information

• Manufacturer: BASO Gas Products
• Part Number: H91RG1C

Technical Specifications

• Type: Automatic
• Gas Type: Natural Gas/Propane
• End Style: NPT
• Dimensions: 3 inches L x 1.84 inches W x 3.22 inches H
• Coil Voltage: 24 VAC
• Body Material: Aluminum
• Pressure Rating: 0.5 psi
• Nominal Capacity: 325000 BTU/hr
• Electrical Connection: 30 inches Leads
