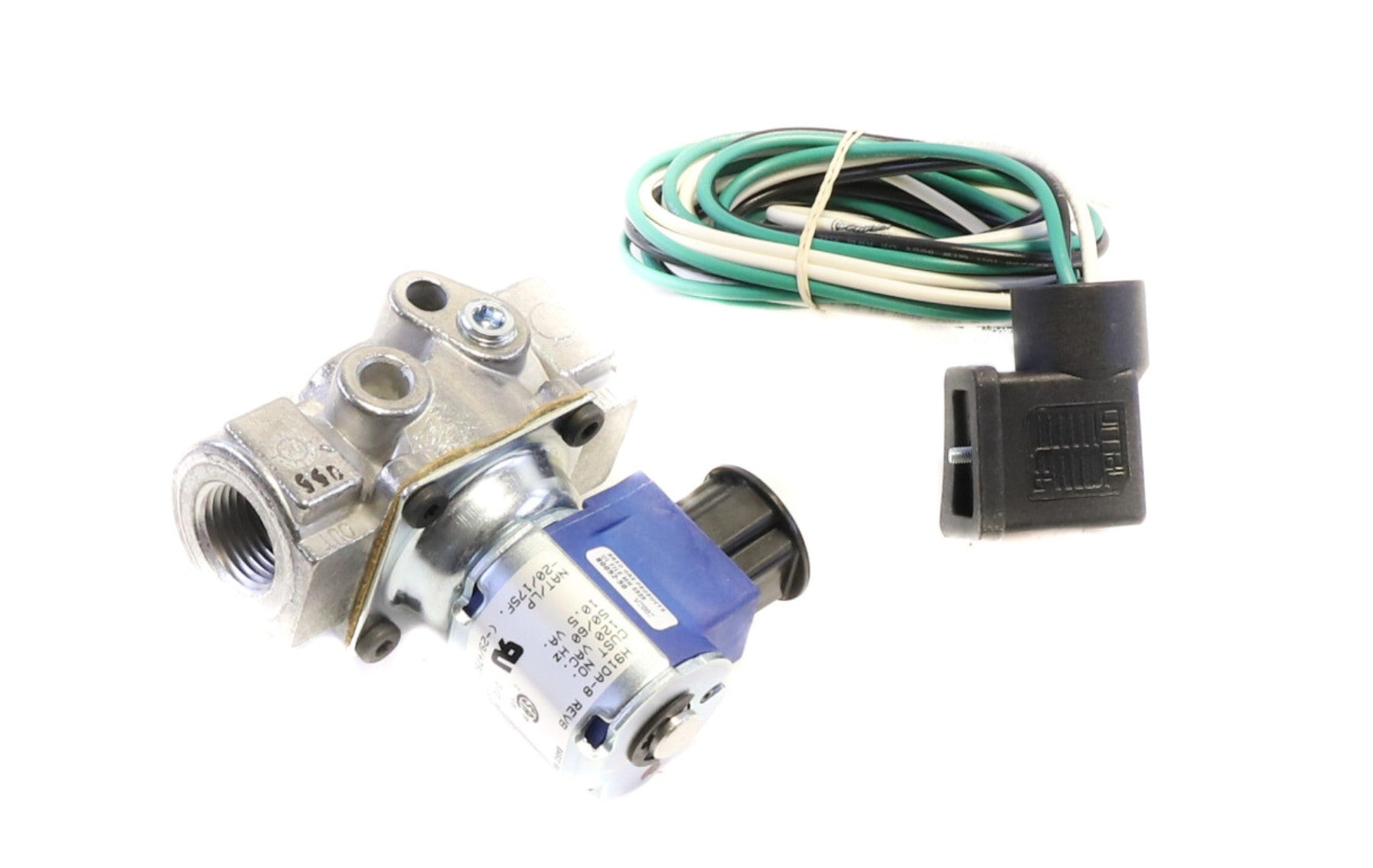

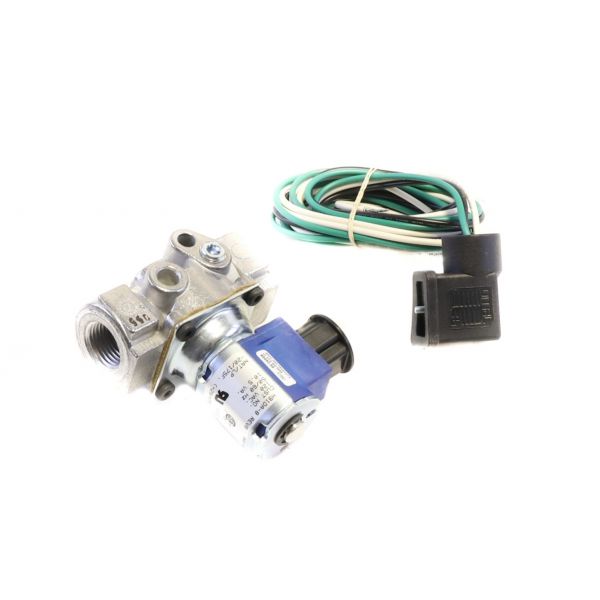

BASO H91DA-8CREVB Automatic Gas Valve

Product Description

The BASO H91DA-8CREVB is an automatic gas valve that operates electrically using a two-wire system. It responds to electrical signals from devices like thermostats to open or close the valve. This gas valve is ideal for use with gas-fired appliances that have a maximum pressure of 0.5 psi. It is compatible with natural gas, liquefied petroleum (LP), and mixtures of LP gas and air. The valve features a half-inch NPT connection.

• Electrically operated shutoff valve.
• Automatically opens and closes based on demand.
• Designed for various gas-fired appliances.

Product Highlights

This valve is reliable for effective gas flow management and enhances safety in gas appliance operations.

Product Information

Standard Information

• Brand: BASO Gas Products
• Type: Gas Valve

Technical Specifications

• MPN: H91DA-8CREVB
• Size: 1/2 NPT
• Capacity (BTU): 240000
• Kilowatts (KW): 70
• Voltage: 120V
• Rated Inlet Pressure: 0.5 psi
• Operating Temperature: -20 to 175 F (-40 to 79 C)
• Operable Gas Types: Natural, Liquified Petroleum (LP), and LP gas-air mixtures
