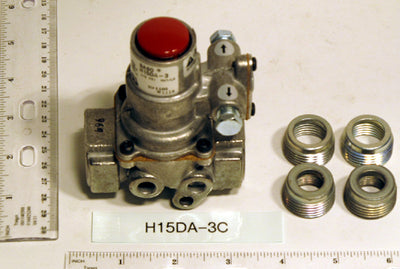

BASO H15DA-3C 3/4 NPT Automatic Pilot Valve 402000 BTU Replaces H15CA-1 1922D2 1922D3 160-9566 P-9155 B815-400 8815-400

Product Description

The BASO H15DA-3C 3/4 NPT Automatic Pilot Valve is a reliable solution for various gas applications. It provides safe lighting and complete shutoff of both pilot and main burner gas in the event the flame heating the thermocouple is extinguished. Designed for use with natural gas and liquefied petroleum (LP) gas, this valve operates at pressures up to 0.5 psi.

• Provides safe lighting and shutoff
• Compatible with natural and LP gas
• Operating pressure up to 0.5 psi

Product Highlights

The H15DA-3C pilot valve restricts installation challenges in dimensionally confined spaces. It ensures gas flow only to the pilot burner during lighting, and features a larger reset button for easy operation. This product has proven reliability with thousands of units in service globally.

Product Information

Standard Information

• Series: H15
• Brand: BASO Gas Products
• Type: Automatic
• Gas Type: Liquid Propane/Natural Gas
• End Style: NPT

Technical Specifications

• MPN: H15DA-3C
• Nominal Size: 3/4 inch
• Operating Pressure: 0.5 psi
• BTU Capacity: 402000 BTU
• Body Material: Aluminum
• Temperature Range: 175 degrees Fahrenheit
• Height: 3.93 inches
• Width: 1.93 inches
• Electrical Connection: 1/8 inch NPT Pilot Tap
