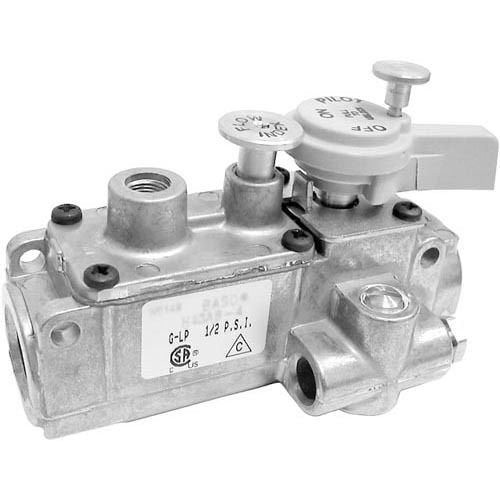

Baso H43AB-4 Gas Valve High Temperature Automatic Pilot 122000 BTU

Product Description

The Baso H43AB-4 Gas Valve is engineered for high-temperature applications, providing reliable performance in HVAC systems. Ideal for use with pilot burners and ignition systems, this automatic pilot valve supports natural gas, liquefied petroleum, and LP gas-air mixtures, facilitating adaptable energy solutions.

• Robust construction ensures longevity and resilience in demanding environments.
• Temperature tolerance ranges from 32 degrees to 250 degrees Fahrenheit, offering versatile operation across various applications.
• Manual shutoff feature allows for direct control, enhancing safety and usability.

Product Highlights

This gas valve is recognized for its high capacity of 122,000 BTU, making it suitable for room heaters, commercial cooking sectors, and industrial heating systems.

Product Information

Standard Information

• Brand: Baso
• Model: H43AB-4

Technical Specifications

• Gas Type: Natural, Liquefied Petroleum, LP Gas-Air Mixtures
• Inlet Size: 3/8 inch NPT
• Outlet Size: 3/8 inch NPT
• Ignition Type: Pilot
• Ambient Temperature Range: 32 to 250 degrees Fahrenheit
• Maximum Inlet Pressure: 1/2 psi
