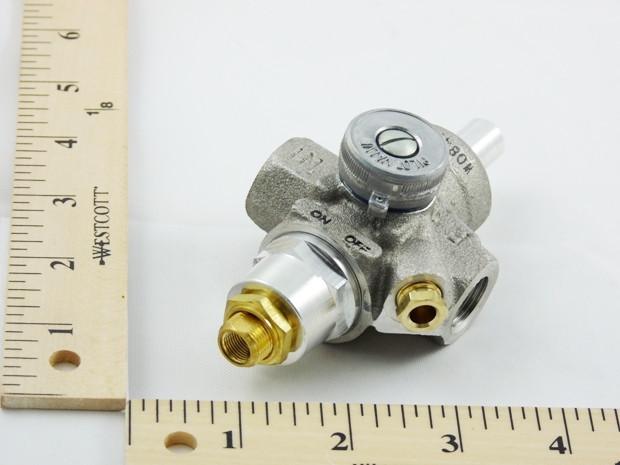

BASO H19AL-2 Valve 3/8 Inch MAN PILOT VLV 139,870 BTUH

Product Description

BASO introduces the H19AL-2, a 3/8-inch manual pilot valve engineered to provide reliable performance in managing pilot gas flow in heating systems. It is designed for configurations requiring 139,870 BTUH, and serves as a direct replacement for Johnson Controls model H19AL2.

• Effective control for natural, liquefied petroleum or LP gas-air mixtures.
• Rated for continuous automatic pilot operations.
• Constructed to meet multiple industry standards including ANSI and CSA.

Product Highlights

This BASO valve is essential for heating professionals seeking precise pilot gas management. It operates within a broad ambient temperature range and follows stringent quality standards.

Technical Specifications

• Inlet Size: 3/8 inch NPT
• Outlet Size: 3/8 inch NPT
• BtuH Capacity: 140,000
• Ignition Type: Continuous
• Max. Inlet Pressure: 1/2 psi
• Valve Type: Automatic Pilot
• Ambient Temp. Range: 32 to 150 degrees F
• Standards: ANSI Z21.20, CAN1-6.4, ANSI Z21.21, CSA 6.5, ANSI Z21.78, CSA 6.20, UL Standard 372
