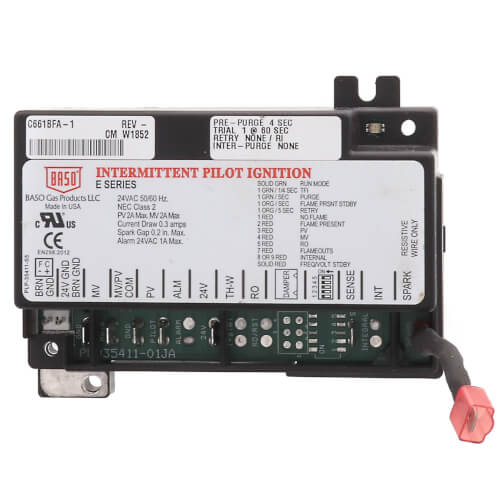

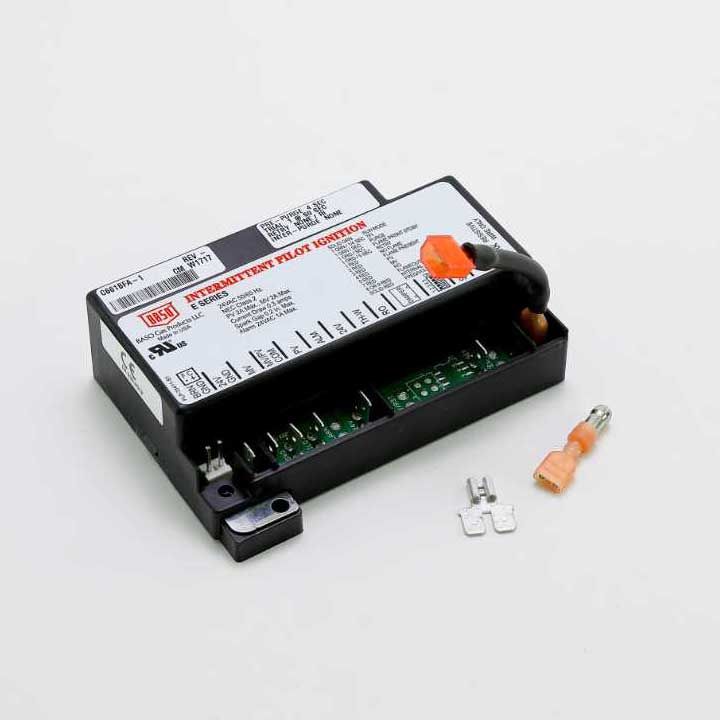

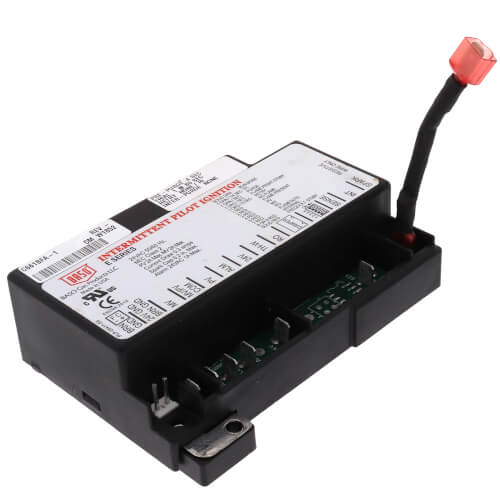

BASO C661BFA-1C 24V Intermittent Pilot Ignition Control - No Retry, Remote Flame Sensing

Product Description

The BASO C661BFA-1C is an advanced 24V intermittent pilot ignition control designed for reliable operation in gas-fired appliances. Engineered for efficiency and safety, this control board effectively manages ignition sequence, flame monitoring, and safety shutoff operations.

• Efficient 50-second trial for ignition with a 15-second inter-purge and 4-second pre-purge
• Features a microprocessor for accurate timing control
• Capable of remote flame sensing for enhanced safety

Product Highlights

This ignition control is specifically designed for intermittent pilot boilers, furnaces, and other heating appliances. It ensures an efficient combustion process by effectively managing the pre-purge and inter-purge timings, eliminating any need for retry.

Product Information

Technical Specifications

• Brand: BASO
• MPN: C661BFA-1C
• Ignition Type: Intermittent Pilot
• Voltage: 24V
• Pre-Purge Time: 4 seconds
• Inter-Purge Time: 15 seconds
• Trial for Ignition: 50 seconds
• Max Current Draw: 0.2 Amps
