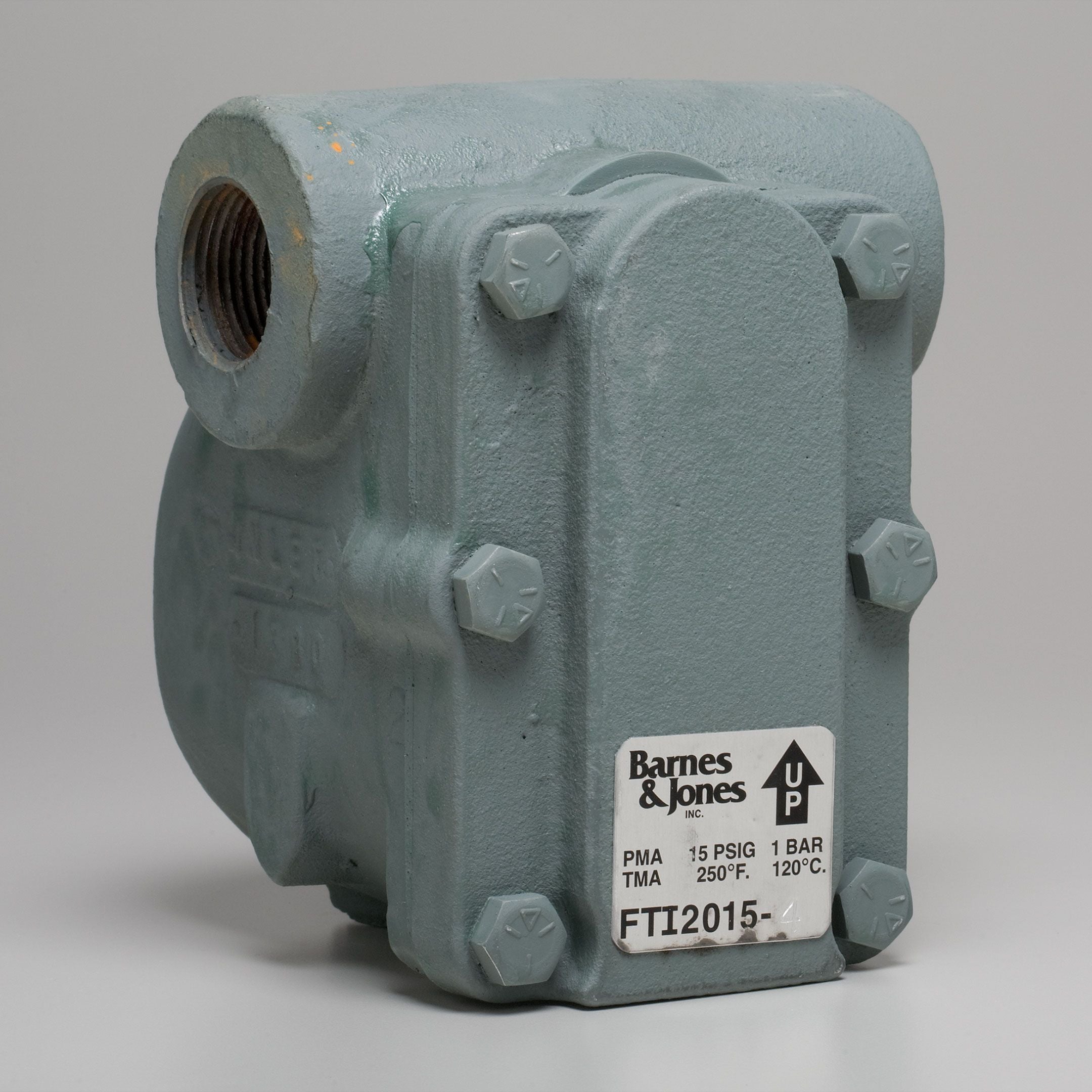

Barnes & Jones FTI2015-4 Float & Thermostatic Trap - 1 Cast Iron FTI2015-4

Product Description

The Barnes & Jones float and thermostatic steam trap, model FTI2015-4, features a one inch trap connection in an in-line horizontal configuration. This design allows steam to enter from one side of the trap while allowing condensate to discharge from the same side. The FTI2015-4 is cast iron and supports a maximum operating pressure of fifteen psi.

• Designed for continuous drainage on low, medium, and high-pressure steam mains.
• Constructed with stainless steel internal components for durability.
• Accurate for venting air at low pressures and handling startup air loads.

Product Highlights

The FTI2015-4 steam trap ensures efficient operation on heat exchange equipment by rapidly venting air and non-condensable gases. This model is suitable for systems with modulating pressures and varying loads.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: FTI2015-4

Technical Specifications

• Model: FTI2015-4
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1 inch
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 15 psi
• Weight: 12.40 lbs
