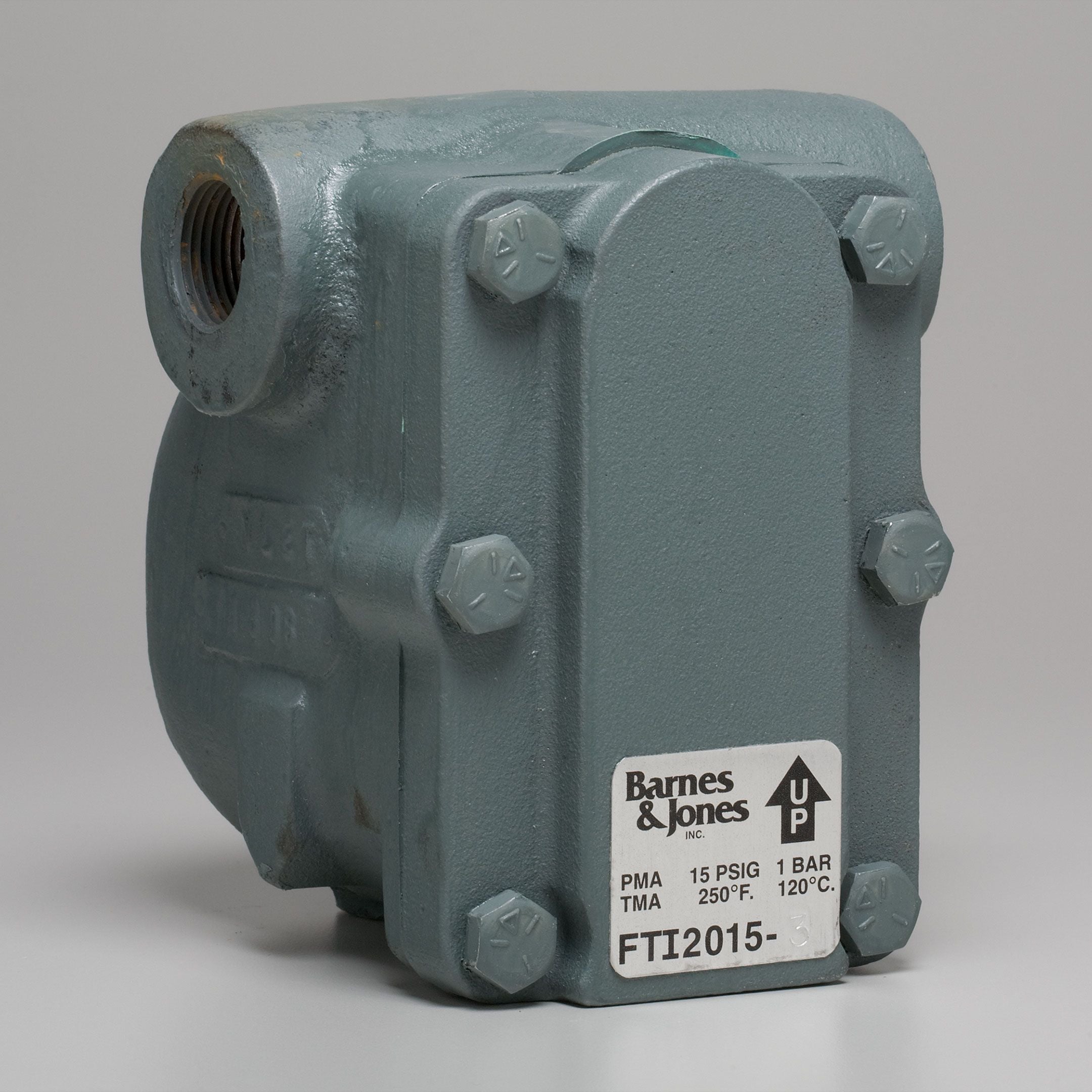

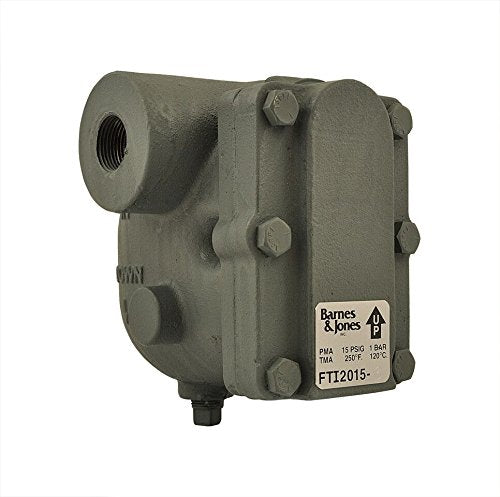

Barnes & Jones FTI2015-3 - 3/4 Cast Iron Float & Thermostatic Trap (15 PSIG)

Product Description

The Barnes & Jones float and thermostatic steam trap, model FTI2015-3, offers a 3/4 trap connection in an in-line horizontal configuration. This design allows steam to enter the trap from one side while condensate discharges from the same side. The FTI2015-3 is suited to replace inverted bucket traps in steam heating systems.

• Inline 3/4 Float & Thermostatic Steam Trap designed to replace misapplied inverted bucket traps in heating applications.
• Stainless steel valve plug for enhanced durability.
• Brass seat for reliable performance.

Product Highlights

This trap is noteworthy for its continuous drainage capabilities, which are useful in low, medium, and high-pressure steam mains.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: FTI2015-3

Technical Specifications

• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inches
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 15 psi
• Weight: 11.60 lbs
