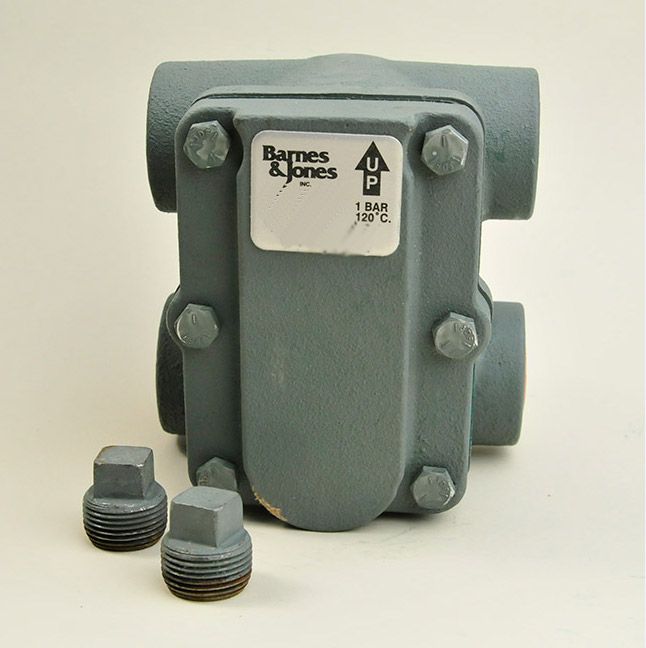

Barnes & Jones FT2125-3 Cast Iron Float & Thermostatic Trap Series FT2000

Product Description

The Barnes & Jones FT2125-3 is a robust float and thermostatic steam trap designed for efficient condensate drainage in steam systems. Perfect for use in heat exchange equipment and applicable for low, medium, and high-pressure steam mains.

• 3/4 inch cast iron trap with H-pattern configuration for versatile piping layouts.
• Handles up to 125 psi of operating pressure and 1,249 pounds per hour of capacity.
• Equipped with stainless steel internal parts for prolonged operational life and reliability.

Product Highlights

Crafted for continuous drainage, this steam trap excels in scenarios where rapid venting of air and non-condensable gases is crucial. Ideal for systems experiencing variable loads and pressures, and it’s capable of back pressure operation due to its robust design.

Product Information

Standard Information

• Brand: Barnes & Jones
• Model: FT2125-3
• Type: Float & Thermostatic

Technical Specifications

• Material: Cast Iron
• Connection Size: 3/4 inch
• Mounting: H-Pattern, Same Side
• Max Pressure: 125 psi
• Weight: 11.00 pounds
