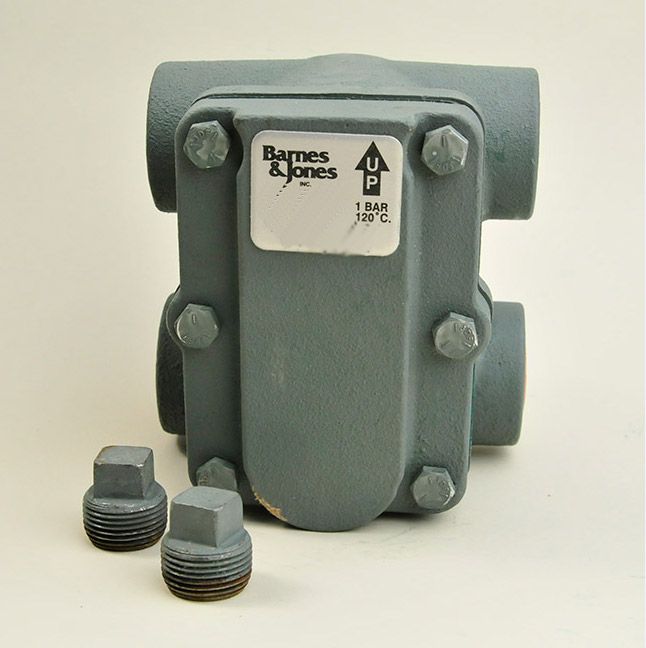

Barnes & Jones FT2075-4 - 1 Cast Iron Float & Thermostatic Trap

Product Description

The Barnes & Jones float and thermostatic steam trap, model FT2075-4, is designed with a one inch trap connection in an H-pattern configuration. This design allows steam to enter from either side, with condensate discharging from the opposite or the same side. The H-pattern configuration provides flexibility for piping arrangements.

• Maximum operating pressure of seventy-five psi
• Continuous drainage for low, medium, and high pressure steam mains
• Capacity of one thousand five hundred twenty-three pounds per hour

Product Highlights

Ideal for service on heat exchange equipment to vent air and non-condensable gases quickly.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: FT2075-4

Technical Specifications

• Model: FT2075-4
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1 inch
• Steam Trap Mounting: H-Pattern, Same Side
• Max Pressure: 75 psi
• Weight: 11.00 pounds
