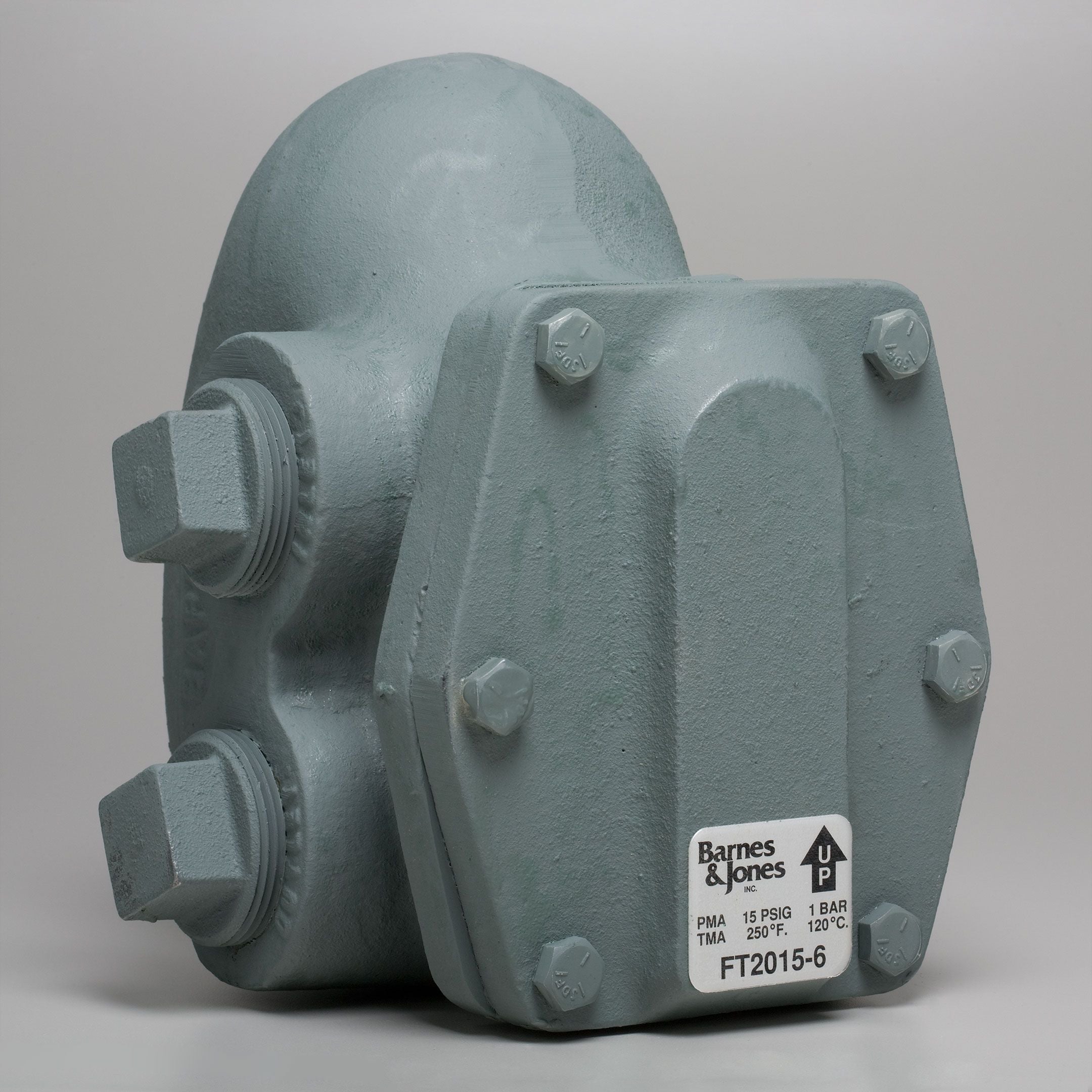

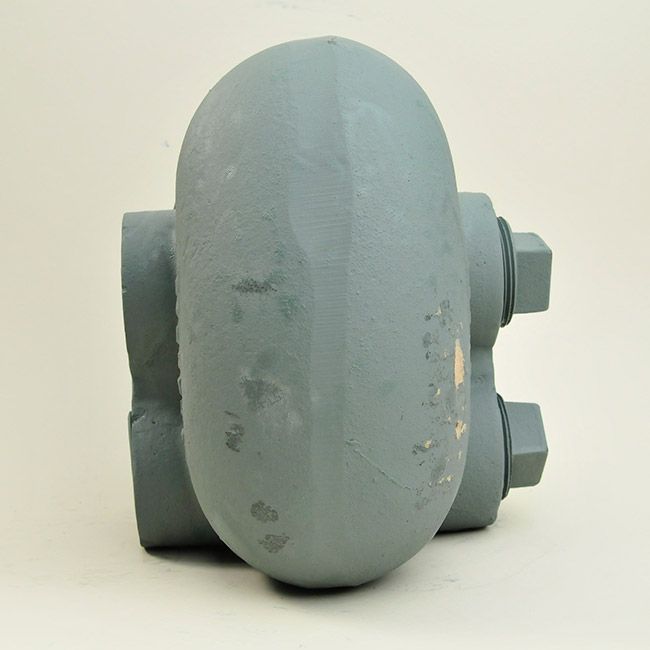

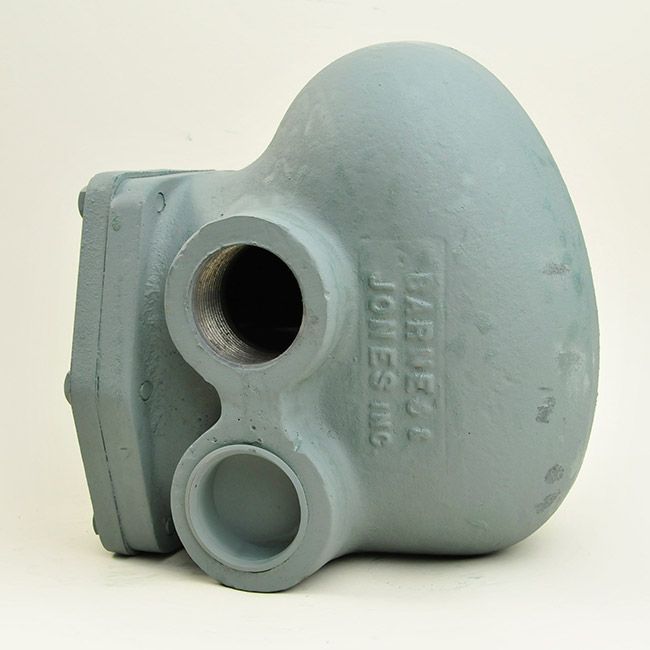

Barnes & Jones FT2015-6 1-1/2 Float & Thermostatic Trap

Product Description

The Barnes & Jones float and thermostatic steam trap, model FT2015-6, features a 1-1/2 trap connection in a same side, H-pattern configuration. This design allows steam to enter from either side while condensate can discharge from either the same or opposite side of the trap. This trap is ideal for low, medium, and high pressure steam systems and is crafted from cast iron with a maximum operating pressure of fifteen psi. The FT2015-6 has a capacity of seven thousand nine hundred eighty pounds per hour and is suitable for services on heat exchange equipment needing to quickly vent air and non-condensable gases.

• 1-1/2 inch trap connection
• Designed for low, medium and high pressure systems
• Constructed from cast iron for durability

Product Highlights

This steam trap features a continuous drainage system designed to handle applications with varying loads. The FT2015-6 excels in venting air at low pressures and performing efficiently against back pressure.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: FT2015-6

Technical Specifications

• Model: FT2015-6
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1-1/2 inches
• Steam Trap Mounting: H-Pattern, Same Side
• Max Pressure: 15 psi
• Weight: 26.20 lbs
