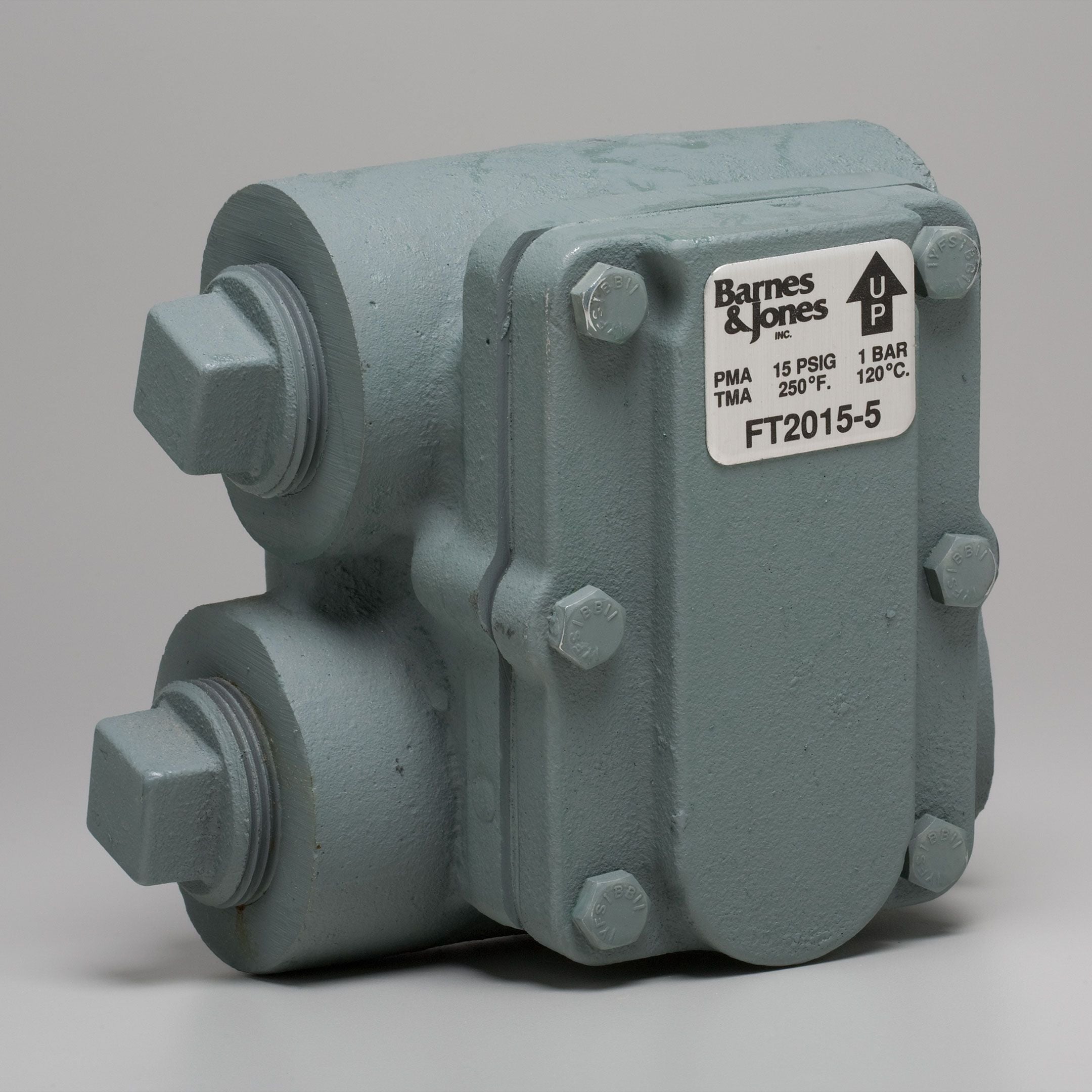

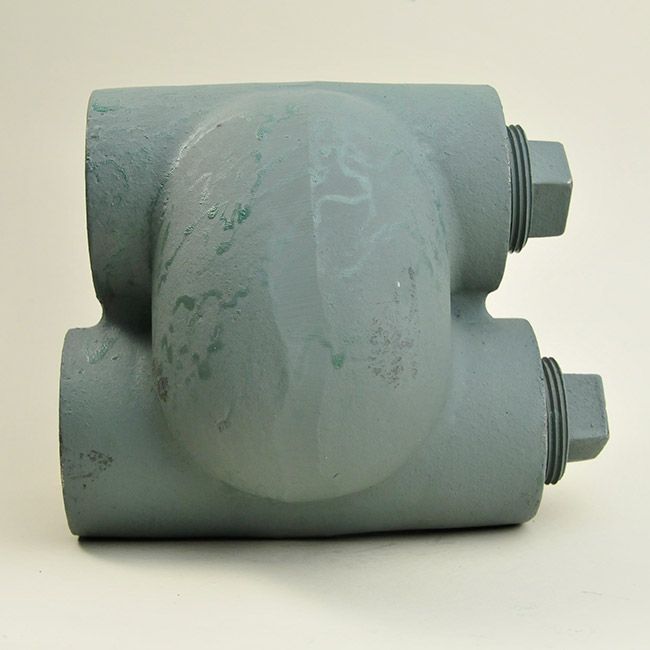

Barnes & Jones FT2015-5 1-1/4 Float & Thermostatic Trap

Product Description

The Barnes & Jones float and thermostatic (F&T) steam trap, model FT2015-5, has a one point two five trap connection in a H-pattern configuration. This allows steam to enter from either side and the condensate to discharge from either side. This pattern offers flexibility when piping. The FT2015-5 is made from cast iron and supports a maximum pressure of fifteen psi. It can handle a capacity of two thousand four hundred fifty-seven pounds per hour. These traps are ideal for heat exchange equipment needing to vent air and non-condensable gases quickly. For modulating pressures with varying loads, the FT2015-5 is a good choice for venting air at low pressures and startup air loads while operating against back pressure.

• Brand: Barnes & Jones
• Product Number: FT2015-5
• Trap Connection Size: 1-1/4

Product Highlights

This trap is designed for efficient performance in heating applications.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: FT2015-5

Technical Specifications

• Model: FT2015-5
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1-1/4
• Max Pressure: 15 psi
• Weight: 16.20 lbs
