BARNES & JONES FT2015-4 PIPE FITTINGS
BARNES & JONES FT2015-4 PIPE FITTINGS
Barnes & Jones FT2015-4 1 F&T Trap

Barnes & Jones FT2015-4 1 F&T Trap

BARNES & JONES
Brand: BARNES & JONES
SKU: FT2015-4
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$173.71
$173.71
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

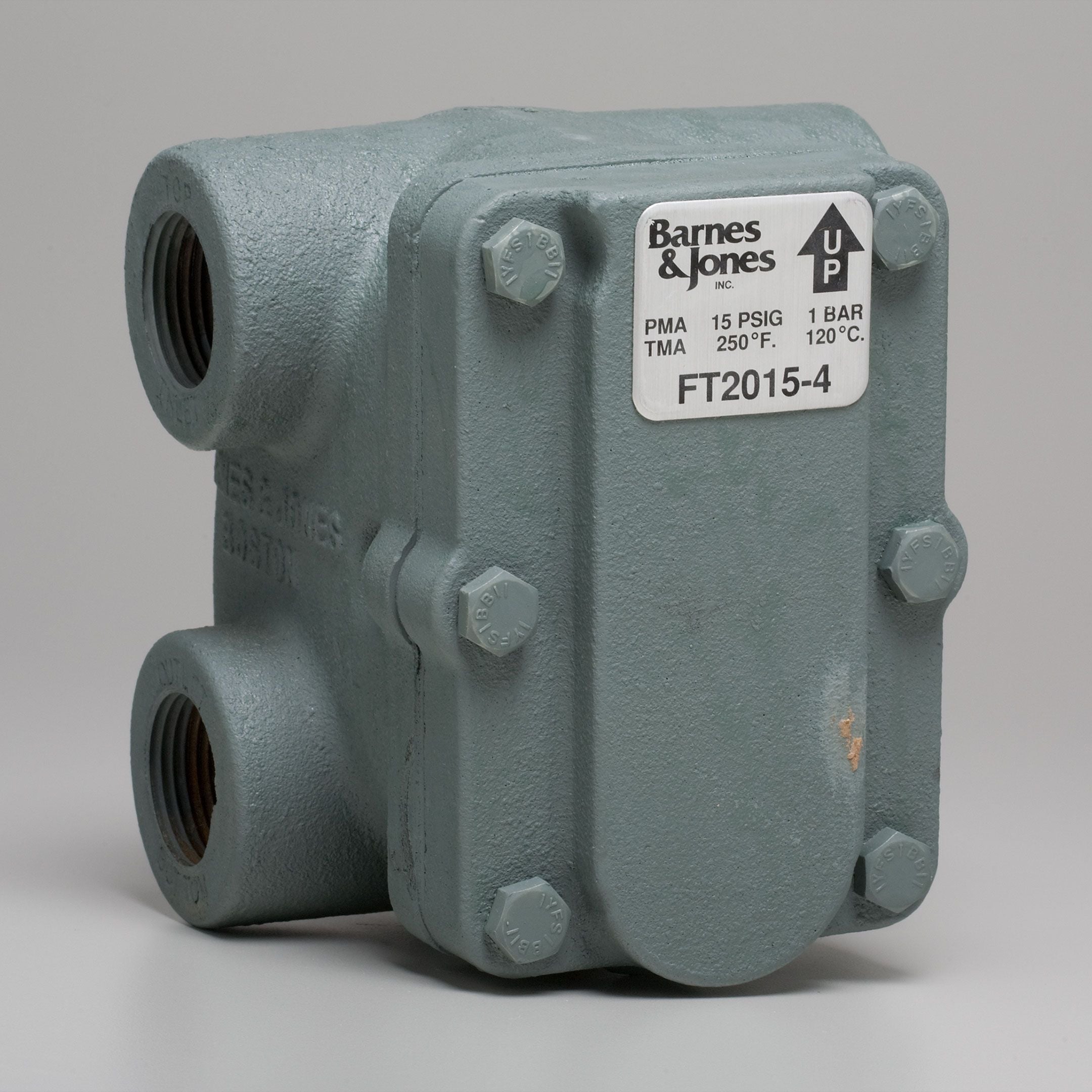

The Barnes & Jones FT2015-4 is a one-inch float and thermostatic steam trap. It is designed with a same-side H-pattern configuration to allow steam and condensate to flow efficiently. This model can operate at a maximum pressure of 15 psi and has a capacity of 1,129 pounds per hour.

  • Cast iron construction.
  • Continuous drainage for effective condensate removal.
  • Compatible with low, medium, and high pressure steam mains.

Product Highlights

This steam trap is suitable for various applications, particularly in heating systems where it efficiently handles air venting and condensate discharge.

Product Information

Standard Information

  • Brand: Barnes & Jones
  • Model: FT2015-4

Technical Specifications

  • Steam Trap Type: Float & Thermostatic
  • Body Material: Cast Iron
  • Steam Trap Connection Size: 1 inch
  • Steam Trap Mounting: H-Pattern, Same Side
  • Max Pressure: 15 psi
  • Weight: 11.50 pounds
