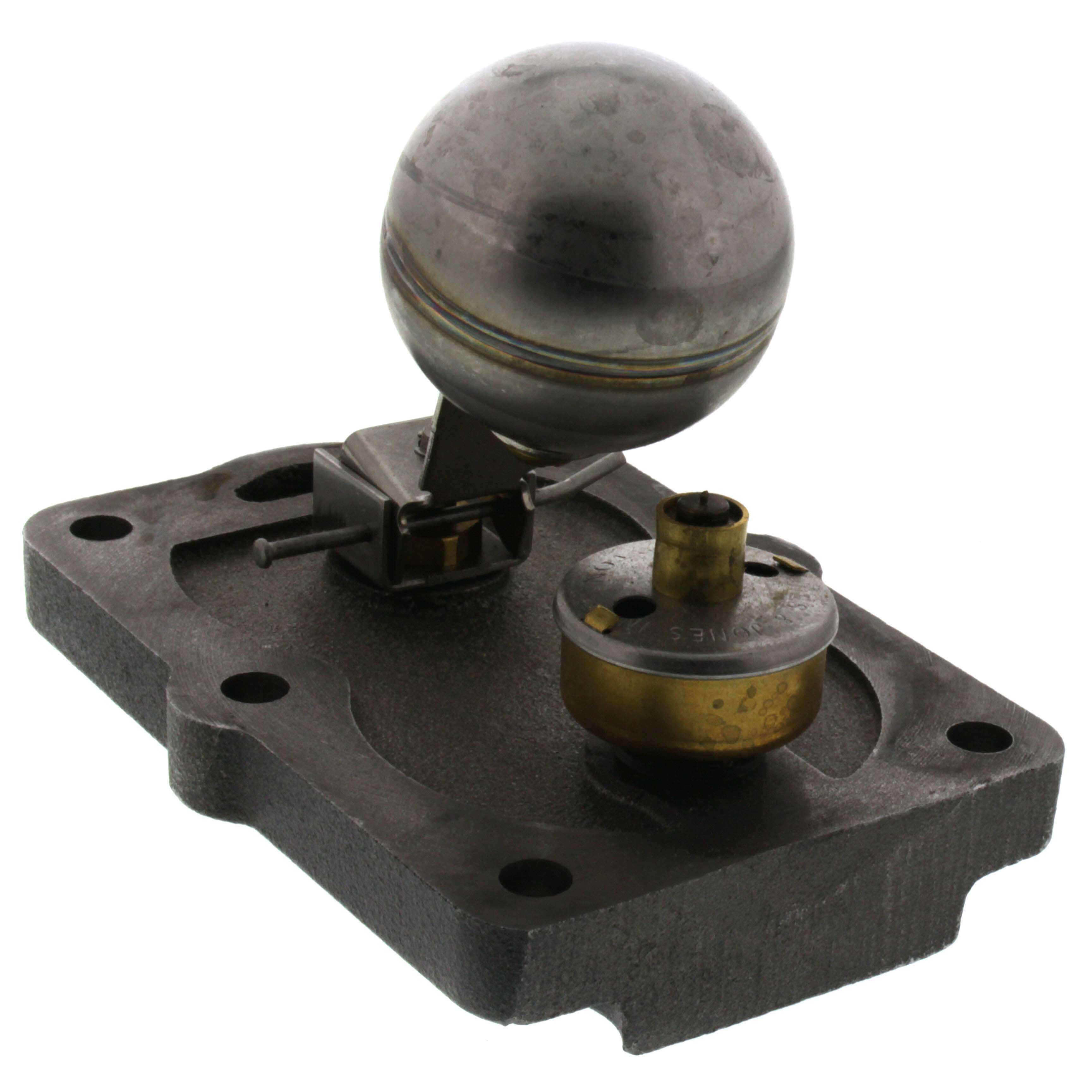

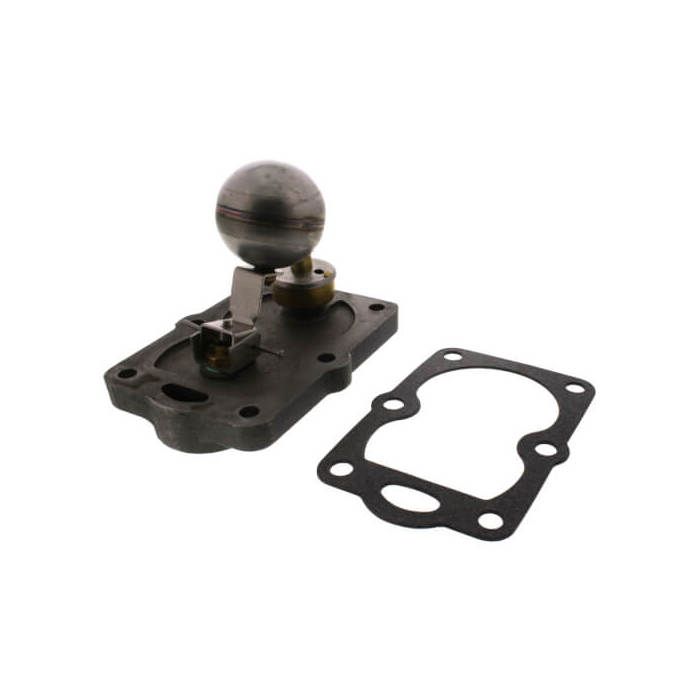

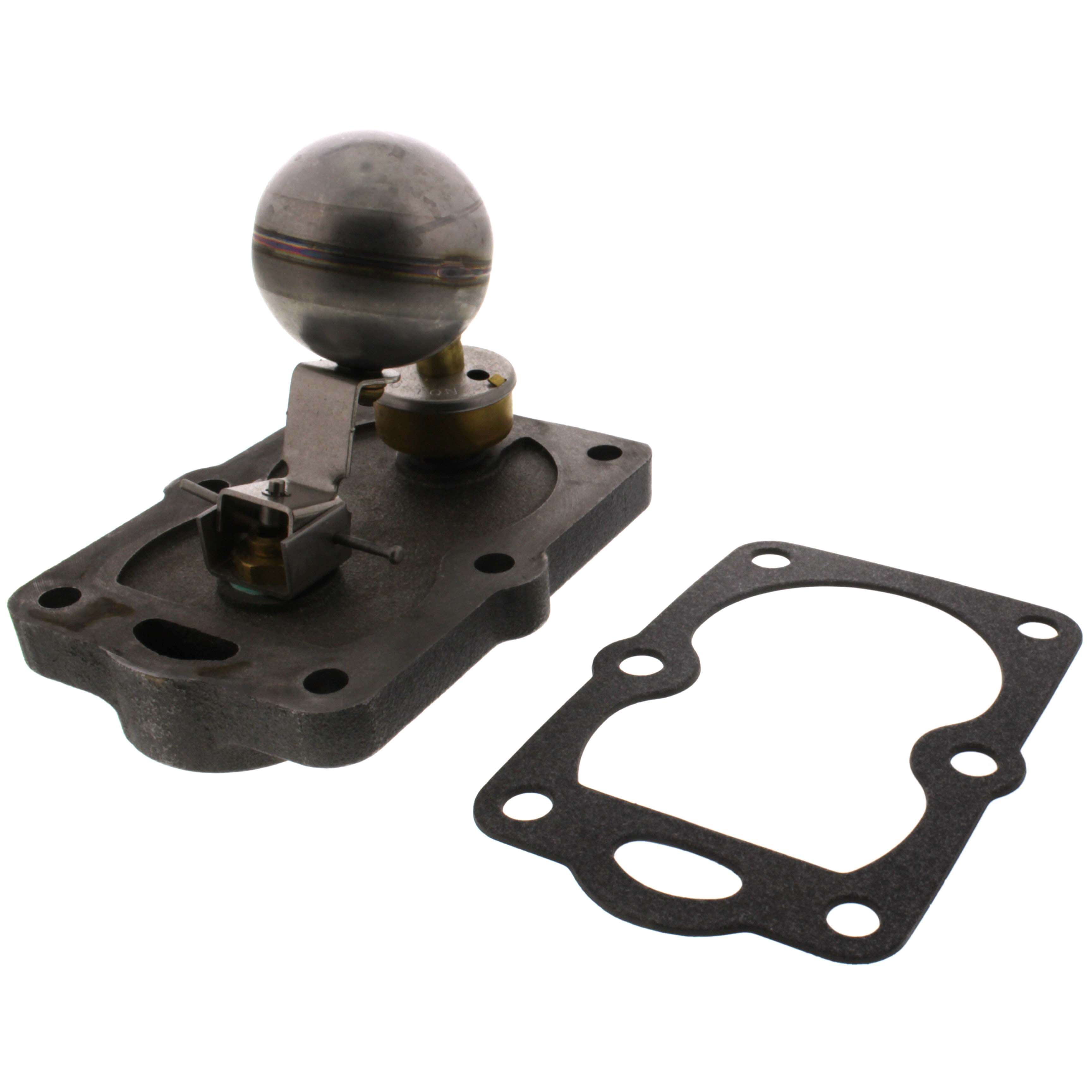

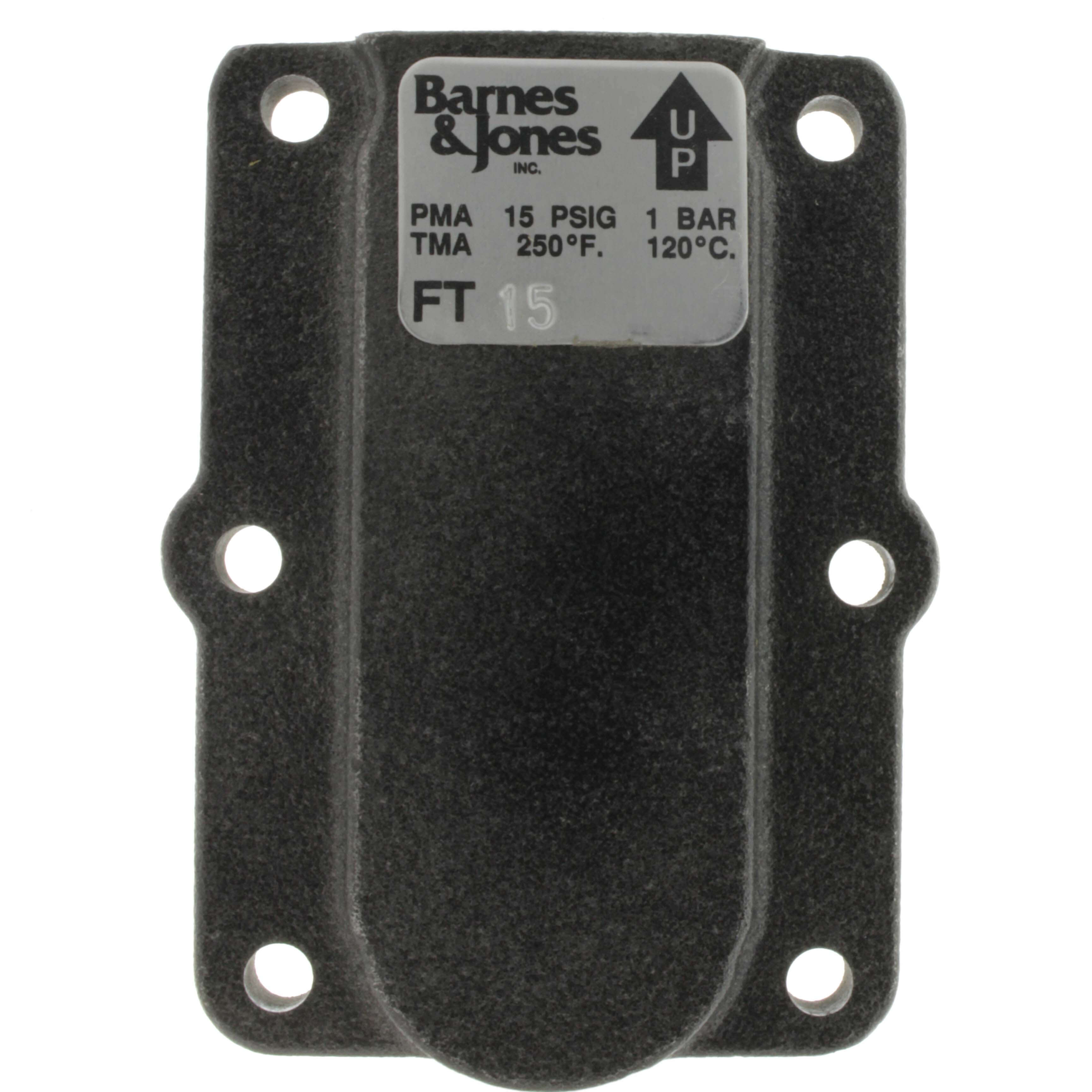

Barnes & Jones FT15 3/4 F & T Kit

Product Description

Barnes & Jones FT15 is a 3/4 F & T kit designed for efficient repair of float and thermostatic steam traps. This kit features components that restore trap performance to factory standards. It is noted for compatibility with various industry-standard traps, making it a versatile choice for HVAC technicians.

• Repairs a variety of float and thermostatic traps.
• Includes a cast iron head and stainless steel float mechanism.
• Easy to install in existing trap bodies.

Product Highlights

This repair kit allows for quick restoration of steam traps, promoting efficient operation in heating systems.

Product Information

Standard Information

• Brand: Barnes & Jones
• Part Number: FT15

Technical Specifications

• Fits Models: 3/4 & 1 Float & Thermostatic 15 PSIG
• Max Pressure: 15 PSI
• Material: Cast Iron, Stainless Steel, Brass
• Weight: 3.415 lbs
• Shipping Dimensions: 5.95 x 5.6 x 4.55 inches
• Compatible With: Barnes & Jones FT2015-3, FT2015-4; Hoffman FT015H-3, FT015H-4; Erwel FT15; Sarco FT-15; and others.
• Includes: New cast iron head, stainless steel float mechanism, machined brass seat, and factory-calibrated thermostatic air vent.
