Barnes & Jones 6929K Hercules 1929H - Cage Unit for Barnes & Jones Traps

Product Description

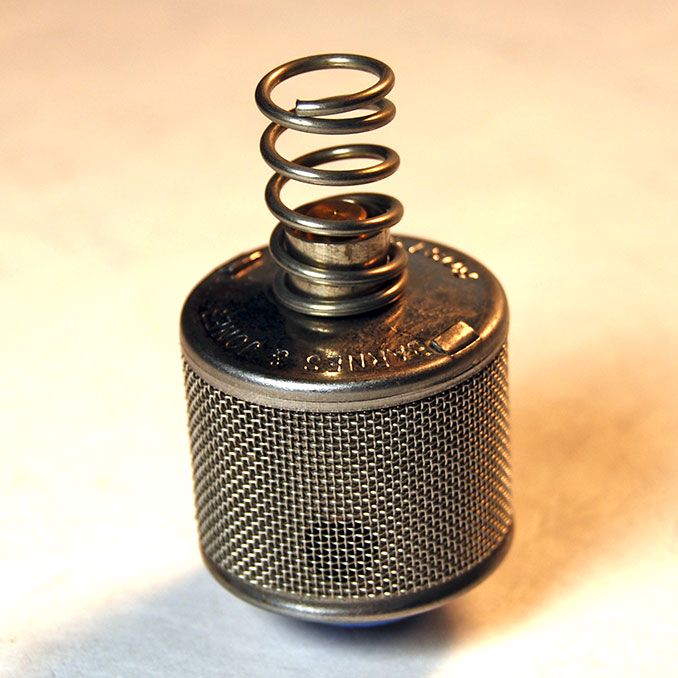

The Barnes & Jones 6929K Hercules cage unit is designed for use with Barnes & Jones 123 and 134 traps. This cage unit requires a new cover upon installation. It's built to replace the existing thermostat and seat. The product includes a seven-coil bellows assembly, a heavy-duty element, and seats surrounded by a stainless steel cage to shield against debris.

• Requires a new cover when installed
• Includes a robust seven-coil bellows assembly
• Stainless steel cage for debris protection

Product Highlights

This cage unit enhances the performance and longevity of specific radiator traps. The design prevents operational issues due to system debris and provides reliable operation of steam traps.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 6929K

Technical Specifications

• Manufacturer Repaired: Barnes & Jones
• Steam Trap Model Repaired: 134A, 134S
• New Cover Required: No
• Weight: 0.20 pounds
