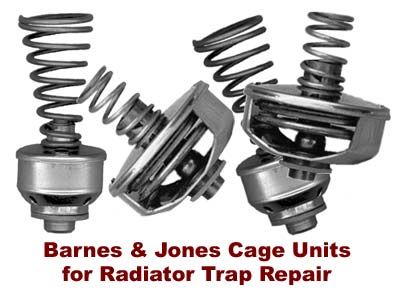

Barnes & Jones 4260 - Cage Unit for Warren Webster Traps

Product Description

The Barnes & Jones 4260 is a cage unit designed for Warren Webster 780 traps. This unit replaces the existing thermostat and seat. It features a heavy-duty thermostatic element within a protective stainless steel cage. This assembly is calibrated for reliable operation. The cage unit is secured by a protrusion that fits into the trap orifice, while a high-tension spring ensures stability.

When steam is detected, the thermostatic element expands to close the ball plunger against the internal seat. This containment continues until the steam transforms into a liquid. As the temperature drops, the element contracts, lifting the plunger and allowing the condensate to drain.

• Compatible with Warren Webster 780 traps
• Features a durable stainless steel cage
• Automatic operation based on temperature changes

Product Highlights

This product ensures effective steam management, reducing the risk of damage caused by condensate buildup.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 4260

Technical Specifications

• Manufacturer Repaired: Warren Webster
• Steam Trap Model Repaired: 780 (125psi)
• New Cover Required: No
• Weight: 0.20 lbs
