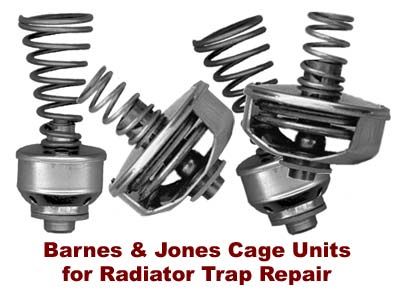

Barnes & Jones 4258 - Cage Unit for Warren Webster Traps

Product Description

The Barnes & Jones 4258 is a replacement cage unit designed specifically for Warren Webster traps 782, 783, and 784. This unit serves to enhance the functionality of your steam traps by providing a durable and efficient solution. The cage unit is crafted to replace existing thermostats and seat components. It includes a heavy-duty thermostatic element surrounded by a sturdy stainless steel cage.

• Heavy-duty construction for long-lasting performance
• Compatible with Warren Webster steam trap models 782, 783, and 784
• Simple installation without the need for a new cover

Product Highlights

The Barnes & Jones 4258 ensures that steam is efficiently controlled within the system. When steam is detected, the thermostatic element expands, closing the ball plunger to retain the steam until condensation occurs.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 4258

Technical Specifications

• Manufacturer Repaired: Warren Webster
• Steam Trap Model Repaired: 782 (125psi), 783 (125psi), 784 (125psi)
• New Cover Required: No
• Weight: 0.20 lbs
