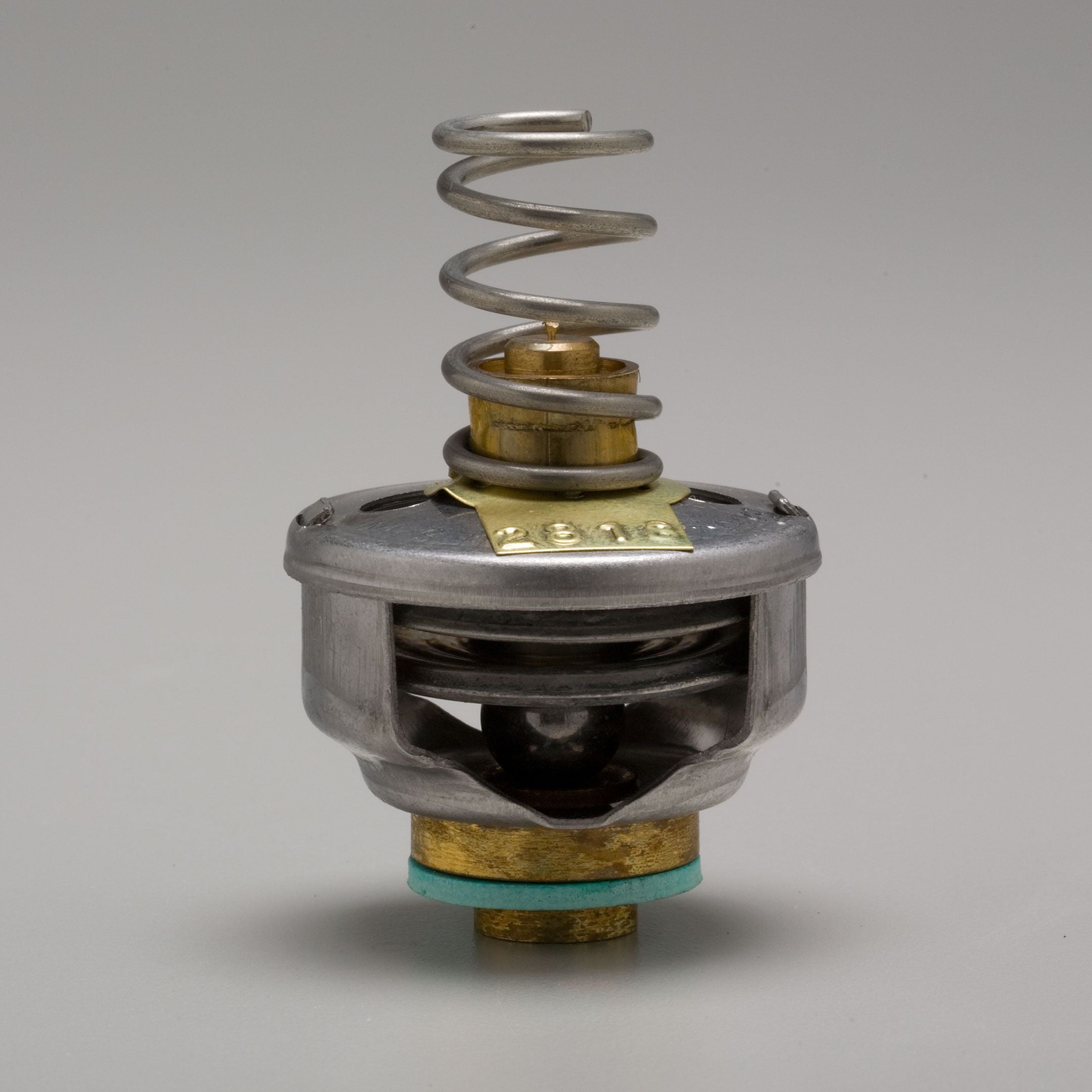

Barnes & Jones 2818K Cage Unit for Illinois Traps Heavy Duty Replacement

Product Description

The Barnes & Jones 2818K cage unit is specifically designed for Illinois 1G traps. This high-quality, heavy-duty cage unit ensures reliable and efficient operation by replacing the existing thermostat and seat with a thermostatic element and seating surrounded by a stainless steel cage. Precisely calibrated for optimum performance, the cage unit maintains solid opening and closing of the trap.

• Replaces existing thermostat and seat, ensuring a new cover installation.
• Stainless steel cage provides robust protection and precise calibration.
• Designed for Illinois 1G steam traps among other models.

Product Highlights

It features a unique mechanism where a high-tension spring applies pressure to the cover to prevent any movement. When the thermostatic element detects steam, it expands to close the ball plunger against its seat, containing the steam. Upon cooling, the element contracts, allowing the liquid condensate to drain effectively.

Technical Specifications

• Brand: Barnes & Jones
• MPN: 2818K
• Weight: 0.20
• Required New Cover: Yes
• Compatible Models: 1G, 1VG, 1GT, 1MG, 6G, 7G, 8G, 9G, 6MG, 7MG, 8MG, 9MG, 10MG
• Manufacturer Repaired: Illinois
