Barnes & Jones 1929 Cage Unit Type A

Product Description

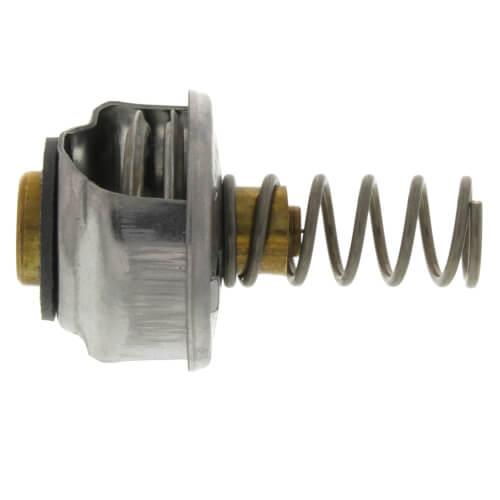

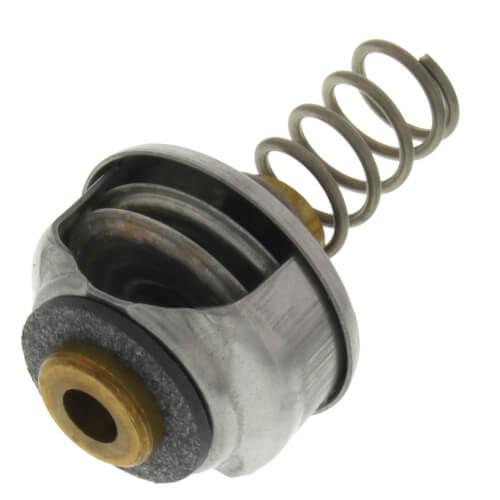

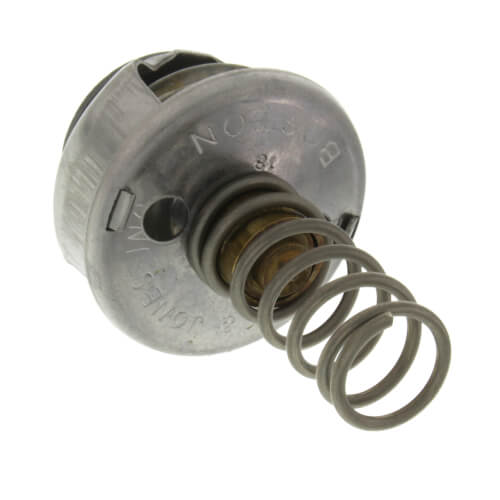

The Barnes & Jones Cage Unit type A, MPN 1929, is designed for use with a variety of steam traps. This replacement unit enhances the performance of steam traps back to factory specifications. Each cage unit is tested under live steam to guarantee optimal operation. It is constructed with a phosphor-bronze and Monel diaphragm, a stainless steel cage unit, and a brass seat for durability.

• Compatible with multiple Barnes & Jones radiator traps.
• Operating pressure of vacuum up to twenty-five PSIG.
• Individually calibrated for performance assurance.

Product Highlights

This cage unit is essential for maintaining the efficiency of steam heating systems by ensuring proper functionality of radiator traps.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 1929

Technical Specifications

• Dimensions: Three inches in depth, one and a half inches in width, and one and a half inches in height
• Weight: Zero point twelve pounds
• Operating Pressure: Vacuum to twenty-five PSIG
• Compatible with Traps: Models including 12, 12C, 120, T120, and others
• OEM Part Numbers: Cleveland Range 105559, Allpoints 51-1450
