Barnes & Jones 1797 - Cage Unit for Warren Webster Traps

Product Description

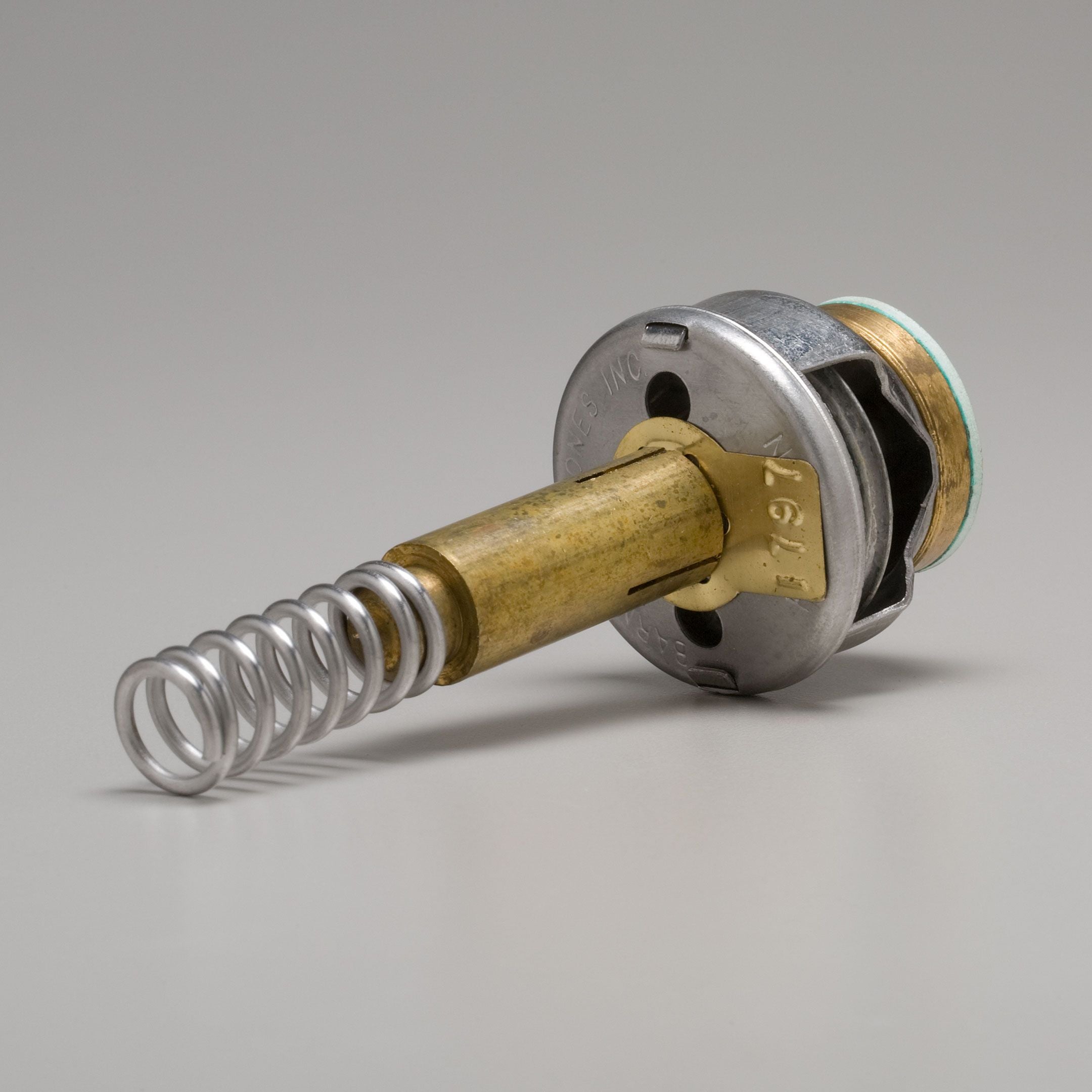

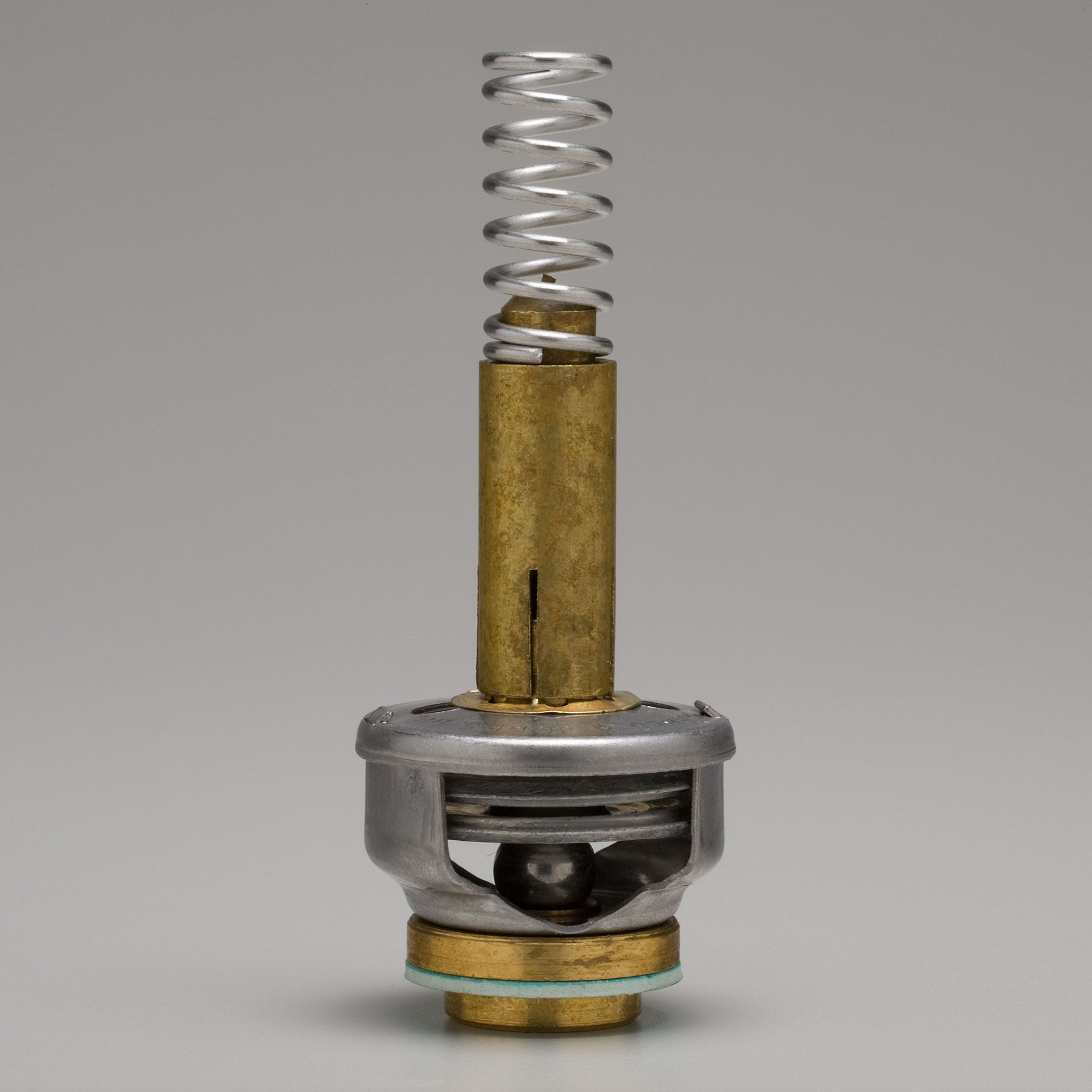

Barnes & Jones offers the 1797 cage unit designed for Warren Webster 22H5 traps. This replacement unit requires a new cover upon installation. The cage unit efficiently replaces the existing thermostat and seating, featuring a heavy-duty thermostatic element. It is surrounded by a protective stainless steel cage, which is calibrated for reliable operation.

• Works with Warren Webster 22H5 traps
• Includes a heavy-duty, calibrated thermostatic element
• Requires a new cover for installation

Product Highlights

The cage unit is engineered for precision in opening and closing, with a spring mechanism that maintains pressure on the cover to prevent any movement.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 1797

Technical Specifications

• Manufacturer Repaired: Warren Webster
• Steam Trap Model Repaired: 22GH, 22H5, 22RG5, CR, GL
• New Cover Required: Yes
• Weight: 0.20 lbs
