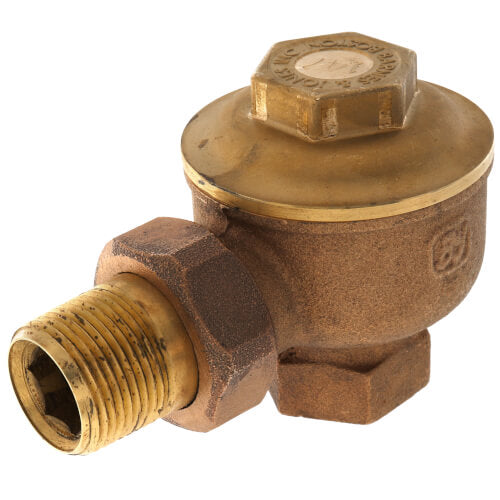

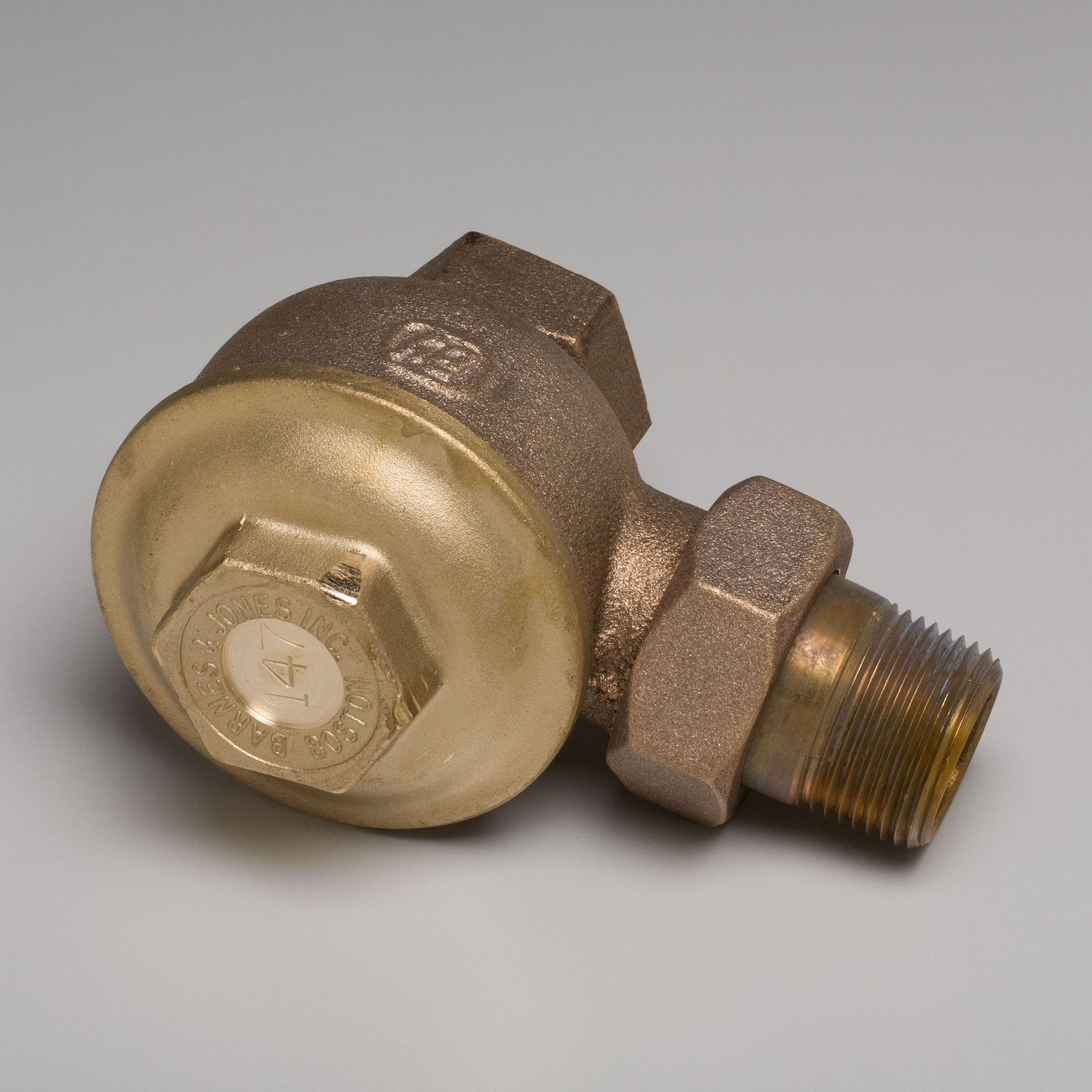

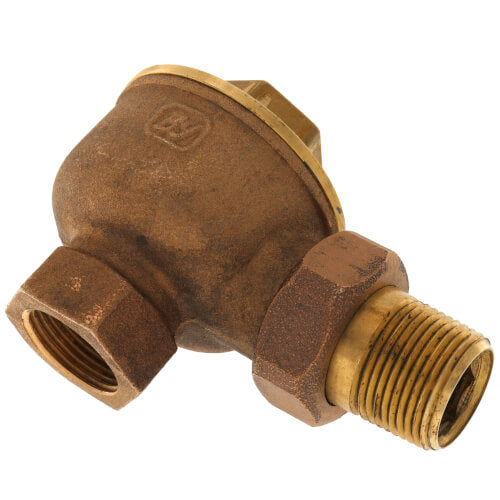

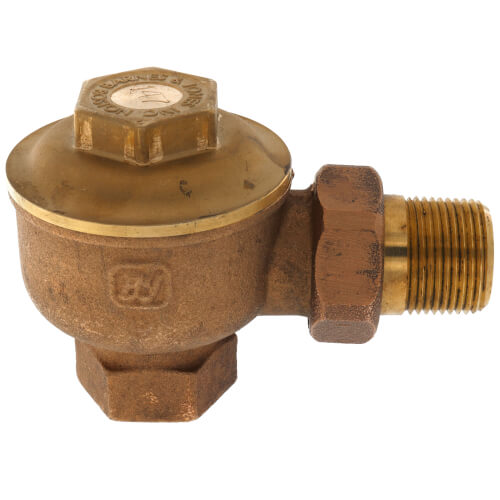

Barnes & Jones 147A 1in Angled Steam Trap
Barnes & Jones 147A 1in Angled Steam Trap
Barnes & Jones 147A 1in Angled Steam Trap

Barnes & Jones 147A 1in Angled Steam Trap

BARNES & JONES
Brand: BARNES & JONES
SKU: 147A
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$280.81
$280.81
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Barnes & Jones 1in Angled Steam Trap, model 147A, is designed for efficient condensate drainage in low pressure heating systems. Made from durable bronze, this steam trap has a maximum operating pressure of twenty-five psi. Its unique angle design provides versatility in installation.

  • Constructed from bronze for longevity
  • Handles a maximum pressure of twenty-five psi
  • Ideal for radiator applications in heating systems

Product Highlights

The 147A is a reliable thermostatic radiator steam trap that opens and closes based on temperature changes, which allows it to manage condensate effectively.

Product Information

Standard Information

  • Brand: Barnes & Jones
  • MPN: 147A

Technical Specifications

  • Steam Trap Type: Thermostatic
  • Body Material: Bronze
  • Connection Size: 1 inch
  • Mounting Style: Angle
  • Max Pressure: 25 psi
  • Weight: 2.60 pounds
