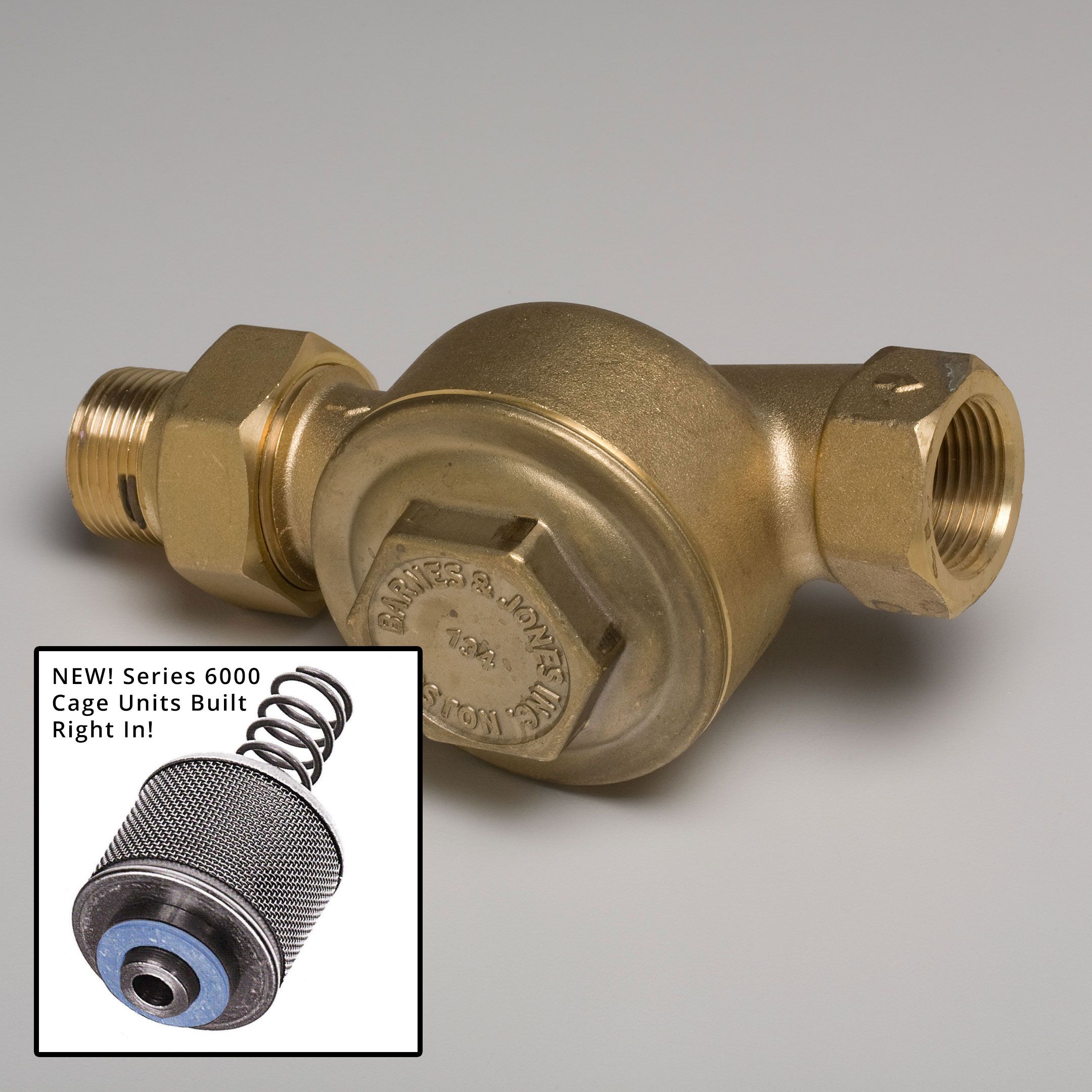

Barnes & Jones 134S-ST-BO/FAILOP B&J 134S-ST - 3/4 Straight Bronze Thermostatic Radiator Super Trap

Product Description

The Barnes & Jones thermostatic radiator steam fail-open super trap, model 134S-ST, has a three-quarter inch trap connection in a straight pattern. It is designed for use in low pressure heating systems where efficient drainage of condensate is essential. The thermostat bellows, made from stainless steel and featuring a seven-coil design, regulates the flow by expanding and contracting based on the presence of steam. When steam is detected, the trap closes, and when cooler air or condensate enters, the trap opens for drainage. The body of this trap is constructed from cast bronze, ensuring durability and longevity under operational conditions.

• Three-quarter inch trap connection.
• Maximum operating pressure of twenty-five psi.
• Stainless steel screen protected bellows.

Product Highlights

This product is ideal for applications in radiator heating systems, ensuring proper steam and condensate management.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 134S-ST-BO/FAILOP

Technical Specifications

• Steam Trap Type: Thermostatic
• Body Material: Bronze
• Steam Trap Connection Size: 3/4 inch
• Steam Trap Mounting: Straight
• Max Pressure: 25 psi
• Weight: 2.00 lbs
