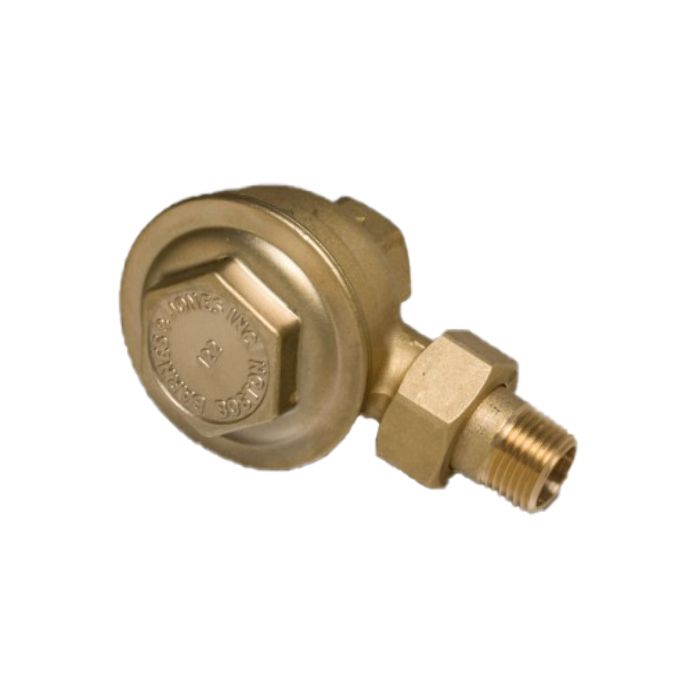

Barnes & Jones 122A Thermostatic Radiator Trap Type A Angle 1/2 Inch

Product Description

The Barnes & Jones 122A Thermostatic Radiator Trap is designed for steam heating systems. This model features a 1/2 inch trap connection in an angle pattern, allowing for efficient condensate drainage. Made of cast bronze, this trap offers corrosion resistance and durability. It is suitable for low-pressure heating systems with a maximum operating pressure of 25 psi.

• 1/2 inch connection
• Angle pattern
• Durable cast bronze construction

Product Highlights

The Barnes & Jones 122A Thermostatic Radiator Trap efficiently manages condensate in steam heating systems. The thermostatic element expands and contracts based on the presence of steam or cooler air, ensuring optimal functionality.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 122A

Technical Specifications

• Steam Trap Type: Thermostatic
• Body Material: Bronze
• Steam Trap Connection Size: 1/2 inch
• Steam Trap Mounting: Angle
• Max Pressure: 25 psi
• Weight: 1.2 lbs
• Dimensions: 2.56 x 2.56 x 4.5 inches
• Country of Origin: United States
