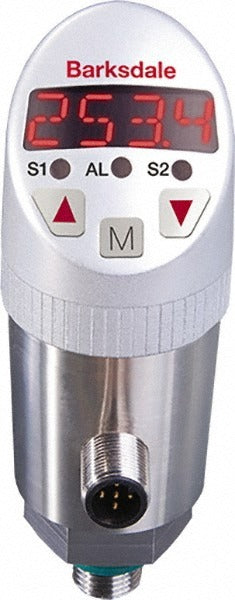

Barksdale BPS34NVM3000P Pressure Switch Transducer 3000 Psi

Product Description

The BARKSDALE BPS34NVM3000P is an electronic pressure switch and transducer with an integrated display, designed for industrial and commercial fluid-system monitoring and control. It provides both a 4-20mA analog output signal and switch functionality in a single compact unit, rated to a maximum of 3,000 psi with 0.5% full-scale accuracy. The 1/4 inch NPT male process connection and M12 electrical connector make field installation straightforward. Operating voltage is 32 volts, and the unit handles media temperatures from -13 degrees F to 212 degrees F. Instrumentation technicians and industrial service professionals are the typical installers.

The BPS34NVM3000P suits applications in hydraulic systems, compressed air lines, water treatment, and other industrial process piping where both a pressure readout and a switching output are required at the same sensing point. The onboard display allows technicians to read process pressure directly at the sensor without a separate gauge or handheld instrument, which is useful during commissioning and routine service checks. Its compact body fits into tight panel or manifold installations.

Key Features

• Maximum rated pressure of 3,000 psi for high-pressure system compatibility
• 0.5% full-scale accuracy for precise process control and monitoring
• 4-20mA analog output signal for direct integration with PLCs and control panels
• Integrated digital display for on-site pressure reading without additional instrumentation
• 1/4 inch NPT male process connection for standard pipe and manifold installation
• M12 electrical connector for reliable industrial wiring interface
• Operating temperature range of -13 degrees F to 212 degrees F for broad media compatibility

Compatibility

Designed as an OEM-style replacement or direct-install electronic pressure switch and transducer for industrial fluid-system applications requiring a 1/4 inch NPT male connection and 4-20mA output.

Installation Notes

Installation should be performed by a qualified instrumentation technician or industrial service professional familiar with pressurized fluid systems. De-energize the control circuit and depressurize and isolate the process line before removing or installing the sensor. Use appropriate thread sealant rated for the process media on the NPT connection, and do not overtighten the process fitting. Wiring to the M12 connector should comply with applicable NEC requirements for the installation environment.
