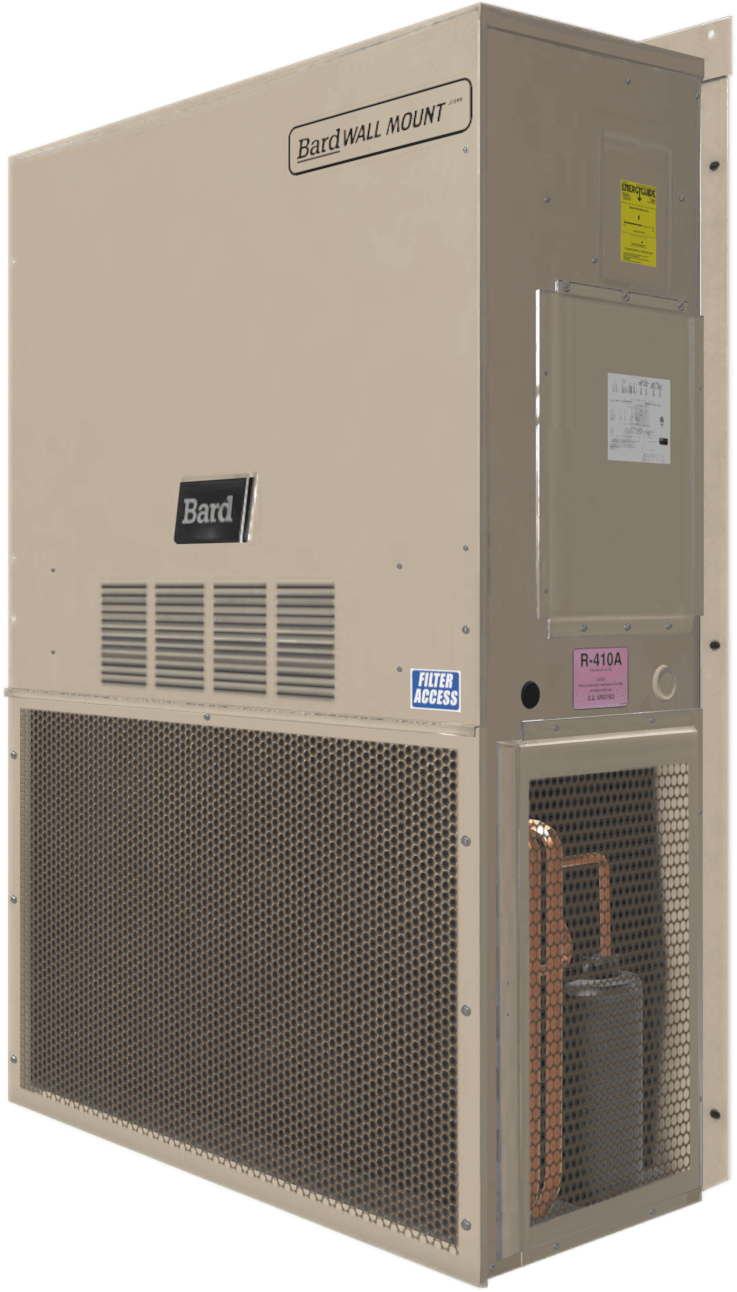

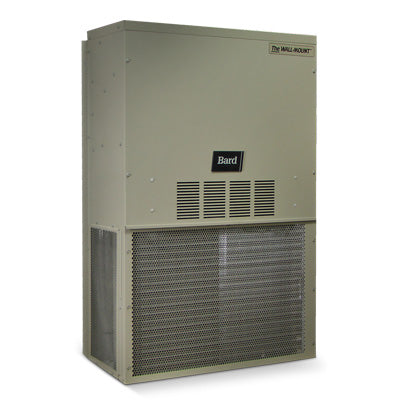

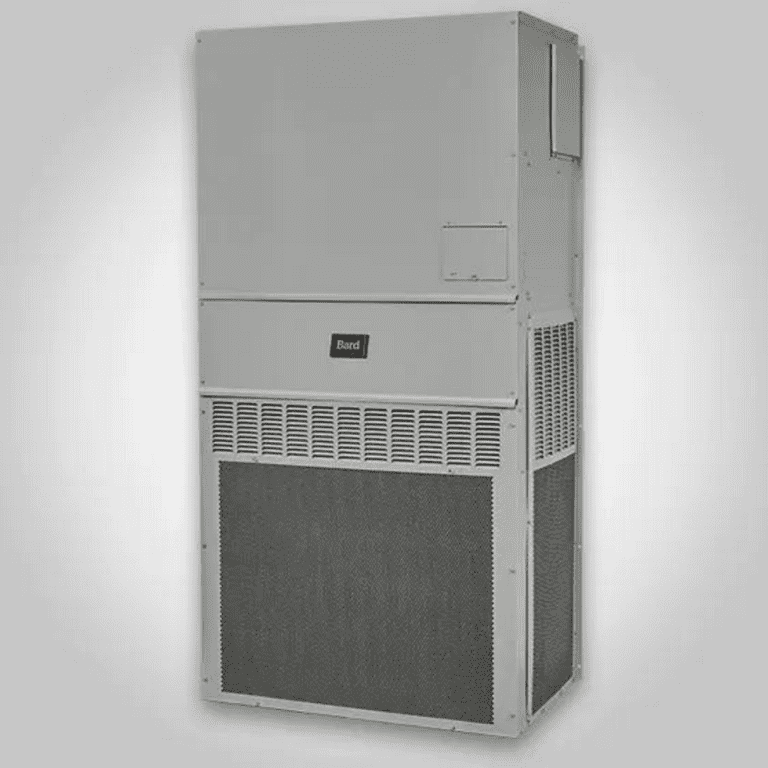

Bard W12AF-A05XXXXXJ 1.0 Ton Air Conditioner

Product Description

The Bard W12AF-A05XXXXXJ is a 1.0 ton air conditioner suitable for various cooling applications. This unit operates on 230/208 volts and uses R-410A refrigerant for effective cooling. It is equipped with a five kilowatt heat strip for supplemental heating during colder periods. The dimensions of the air conditioner are thirty inches in width, forty-eight inches in height, and fourteen inches in depth. It has a total weight of one hundred ninety pounds, and it meets the guidelines for energy efficiency with an Energy Efficiency Ratio (EER) of eleven.

• Operates on 230/208 volts
• Includes a five kilowatt heat strip
• Utilizes R-410A refrigerant

Product Highlights

Product Information

Standard Information

• Capacity: 13,800 Btuh
• Refrigerant: R-454B

Technical Specifications

• EER: 11
• Heat Strip: 5.0kW
• Minimum Circuit Amps: 28
• Maximum Circuit Breaker: 30
• Field Power Wire Size: *1-10
• Ground Wire: *1
• Dimensions: 30 x 48 x 14 inches
• Weight: 190 lb
