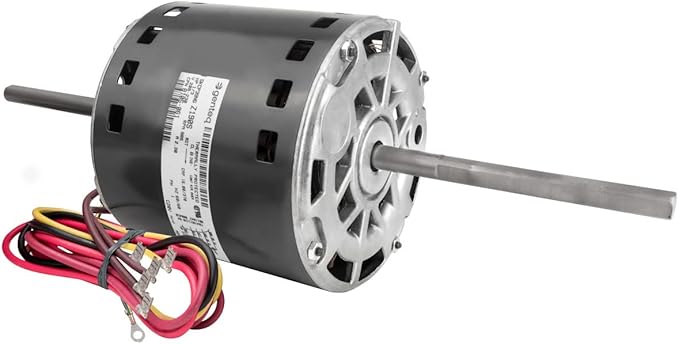

Bard Hvac 8105-061 Motor 1/3 hp 985 RPM

Product Description

The BARD HVAC 8105-061 motor delivers 1/3 hp at 985 RPM with 2-speed functionality and operates at 208-230V. It features a double shaft, band mount, and sleeve bearings. This motor requires a 15MFD capacitor and includes automatic overload protection. Designed for continuous duty with an open drip-proof air over enclosure and Class B insulation, it can withstand a 40C ambient temperature.

• Operates at 208-230V with 2-speed functionality
• Features a double shaft, band mount, and sleeve bearings
• Includes automatic overload protection and Class B insulation

Product Highlights

This BARD HVAC motor is designed for continuous operation and protection against overheating, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: BARD HVAC
• Manufacturer Part Number: 8105-061

Technical Specifications

• Speed: 985 RPM
• Voltage: 230 Volts
• Horsepower: 0.33 Horsepower
• Voltage Rating: 208 to 230 V
• HP Rating: 1/3 hp
• Speed Rating: 985 rpm
• Rotation Type: CW
• Number of Speeds: 2
• Suitable For Use With: W42L2-A, W48L2-A, W60L2-A, W70L2-A Wall-Mounted Package Air Conditioners
• Brand: Bard HVAC
