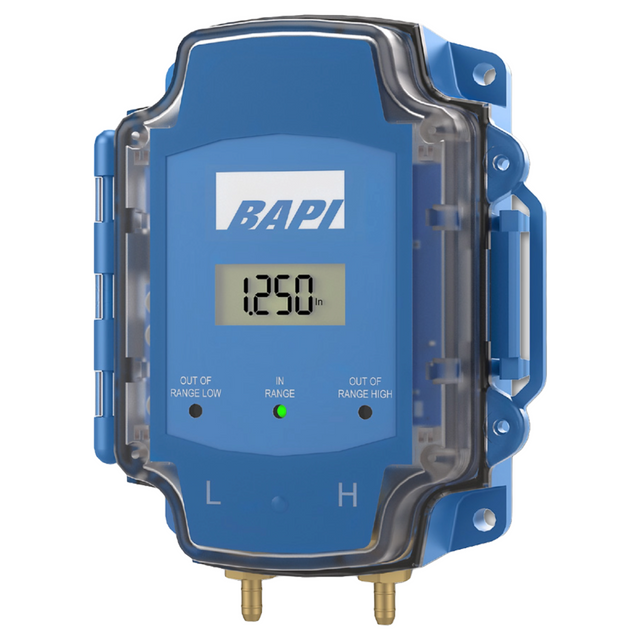

BAPI BA/ZPM-LR-ST-D-BB Zone Pressure Multi-Sensor, 10 Low Pressure Ranges, 5 Outputs

Product Description

The BAPI BA/ZPM-LR-ST-D-BB is a Zone Pressure Multi-Sensor designed to measure differential pressure. This sensor features ten field selectable low pressure ranges and five field selectable output options, making it versatile for multiple applications.

• Static pressure probe included
• NEMA 4 enclosure for robust protection
• LCD display for easy readout and monitoring

Product Highlights

This device is suitable for measuring clean, dry, non-corrosive gases and provides reliable outputs in a variety of settings.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer: BAPI

Technical Specifications

• Power: 7 to 40 VDC (4 to 20 mA Output)
• Power Consumption: 20 mA max DC at 4 to 20 mA Output
• System Accuracy: ±0.25% FS at 72°F (22°C)
• Compensated Temperature Range: 32 to 122°F (0 to 50°C)
• Storage Temperature: -40 to 185°F (-40 to 85°C)
• Humidity: 0 to 95% RH, non-condensing
• Enclosure Rating: IP66, NEMA 4
• Dimensions: 5.49 x 4.11 x 2.5 inches
