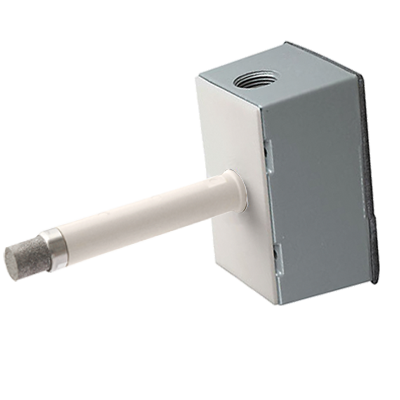

Bapi BA/H200-D-WP Humidity Transmitter 0 to 5 V or 4 to 20 mA

Product Description

The BAPI BA/H200-D-WP humidity transmitter features an interchangeable output of 0 to 5 V or 4 to 20 mA. Designed for durability with an IP66 rating, it has a humidity capacitive of

• Saves space
• Easy to install
• Accurate and dependable

Product Highlights

This humidity sensor is designed to provide accurate readings and reliable performance in various environmental monitoring applications.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/H200-D-WP

Technical Specifications

• Accuracy: 2%
• Housing Material: Metallic
• Output: 0 - 5 VDC
• Power Requirements: 24 VAC, 24 VDC
• Application: Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings
• Mount: Duct
• Manufacturer: BAPI
• MODEL NUMBER: BA/H200-D-WP
• Enclosure Rating: IP66 NEMA 4X
• Enclosure Material: UV-Resistant Polycarbonate UL94 V-0
• Environmental Operation Range (Temperature): -40F to 158F (-40C to 70C)
• Environmental Operation Range (Humidity): 0% to 100% RH
• Humidity Sensor: Capacitive +/- 2% (10 to 90% RH @ 23C)
• Power & Consumption: 10 to 35 VDC, 22 mA maximum
