Bapi BA/H200-D-BB Duct Humidity Transmitter 2% Accuracy

Product Description

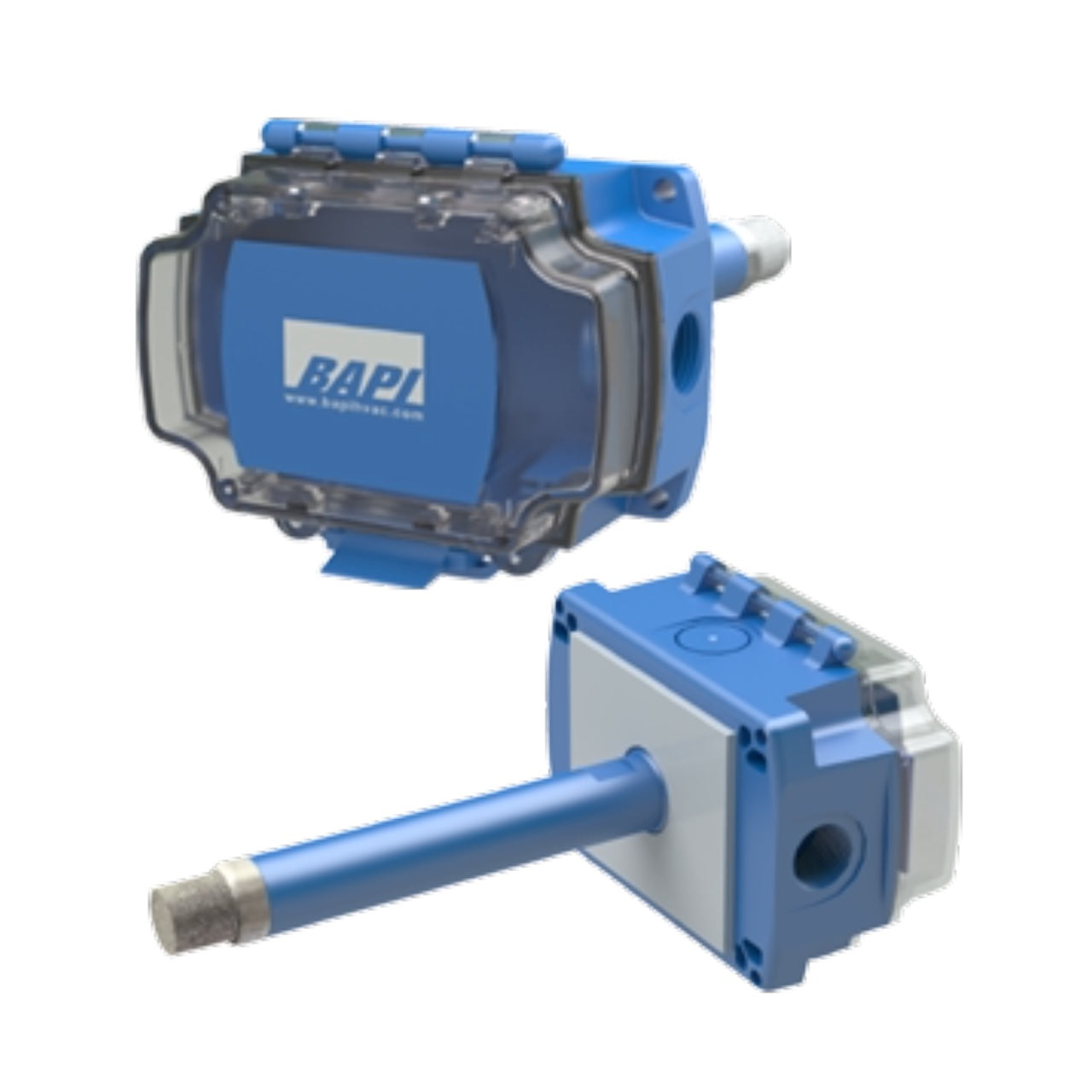

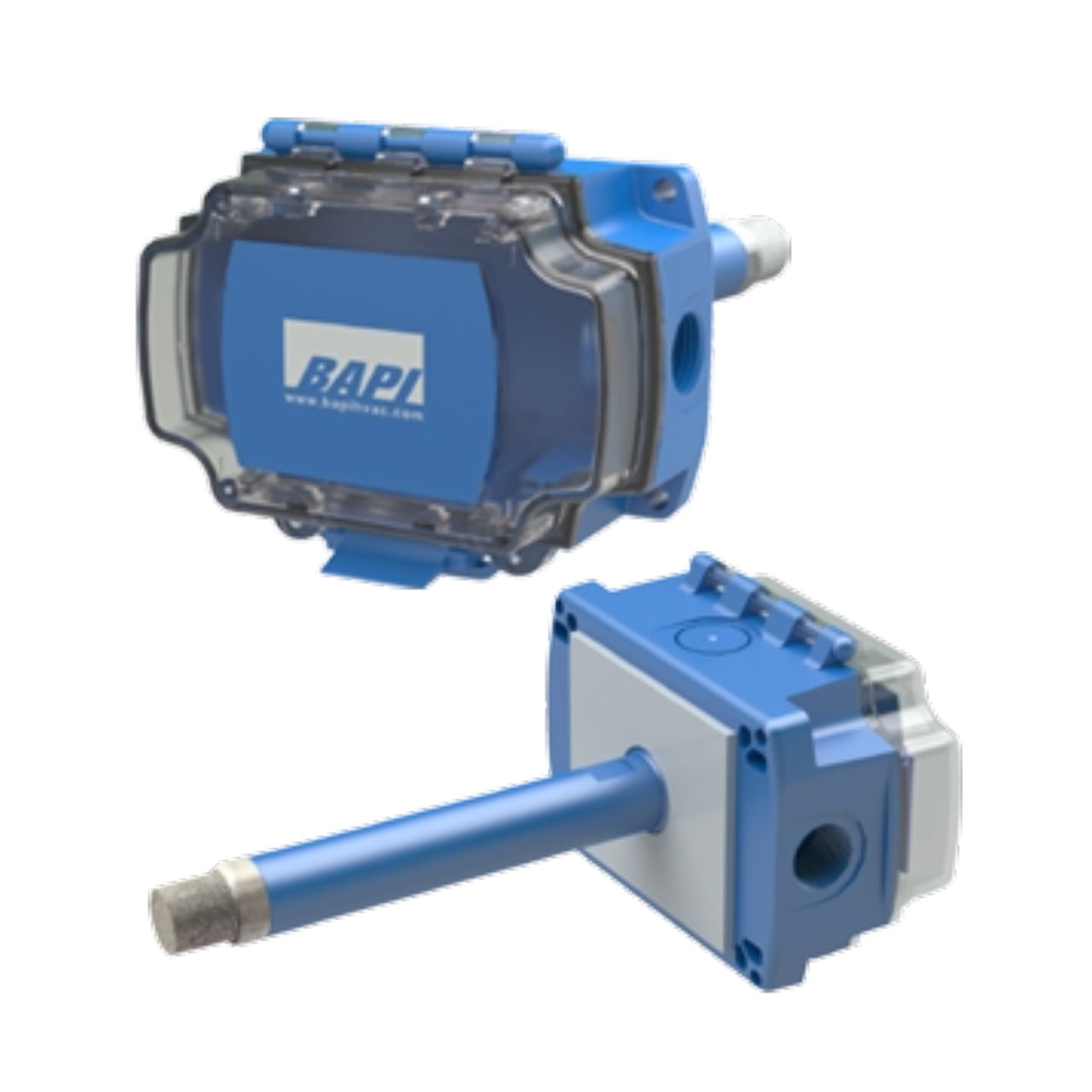

The BAPI BA/H200-D-BB is a duct-mount humidity transmitter designed for continuous relative humidity sensing in commercial and industrial HVAC systems. It delivers a selectable analog output of 0 to 5 VDC or 4 to 20 mA, allowing it to integrate with a wide range of building automation system controllers and data acquisition equipment. The sensor achieves plus or minus 2 percent accuracy and operates on 24 VAC or 24 VDC power. The enclosure is a BAPI-Box housing constructed from poly material, sized for standard duct insertion. Licensed HVAC controls technicians and building automation specialists are the primary installers of this device.

This transmitter is suited for duct-mounted humidity measurement in both supply and return air streams. Typical applications include humidification and dehumidification control, economizer monitoring, discharge and return air sensing, clean rooms, data centers, process control environments, schools, hospitals, and office buildings. The interchangeable output configuration makes it adaptable to existing control wiring without additional signal conditioning hardware. It is commonly specified on projects where a single transmitter model must match multiple controller input types across a facility.

Key Features

• Plus or minus 2 percent humidity accuracy for reliable process and comfort control
• Interchangeable output: field-selectable between 0 to 5 VDC and 4 to 20 mA
• Operates on 24 VAC or 24 VDC power supply — compatible with standard BAS power circuits
• Duct-mount BAPI-Box enclosure constructed from poly material
• Suitable for clean rooms, data centers, hospitals, and other critical environment applications

Compatibility

Designed for duct installation in HVAC systems requiring analog humidity sensing. Suitable for humidification, dehumidification, supply air, discharge air, return air, economizer, clean room, data center, process control, school, hospital, and office building applications.

Installation Notes

Installation is typically performed by a licensed HVAC controls technician or building automation specialist. De-energize the duct system and confirm 24 VAC or 24 VDC power is off at the panel before wiring. Select the desired output signal (0 to 5 VDC or 4 to 20 mA) per the controller input specification before final wiring connections. Follow NEC guidelines for low-voltage control wiring and the equipment manufacturer instructions for duct penetration and sensor insertion depth.

Technical Specifications

• Accuracy: plus or minus 2 percent relative humidity
• Output Signal: 0 to 5 VDC or 4 to 20 mA (interchangeable)
• Power Requirements: 24 VAC or 24 VDC
• Mount Type: Duct
• Enclosure Material: Poly
• Applications: Humidification, dehumidification, supply air, discharge air, return air, economizers, clean rooms, data centers, process control, schools, hospitals, office buildings

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/H200-D-BB
