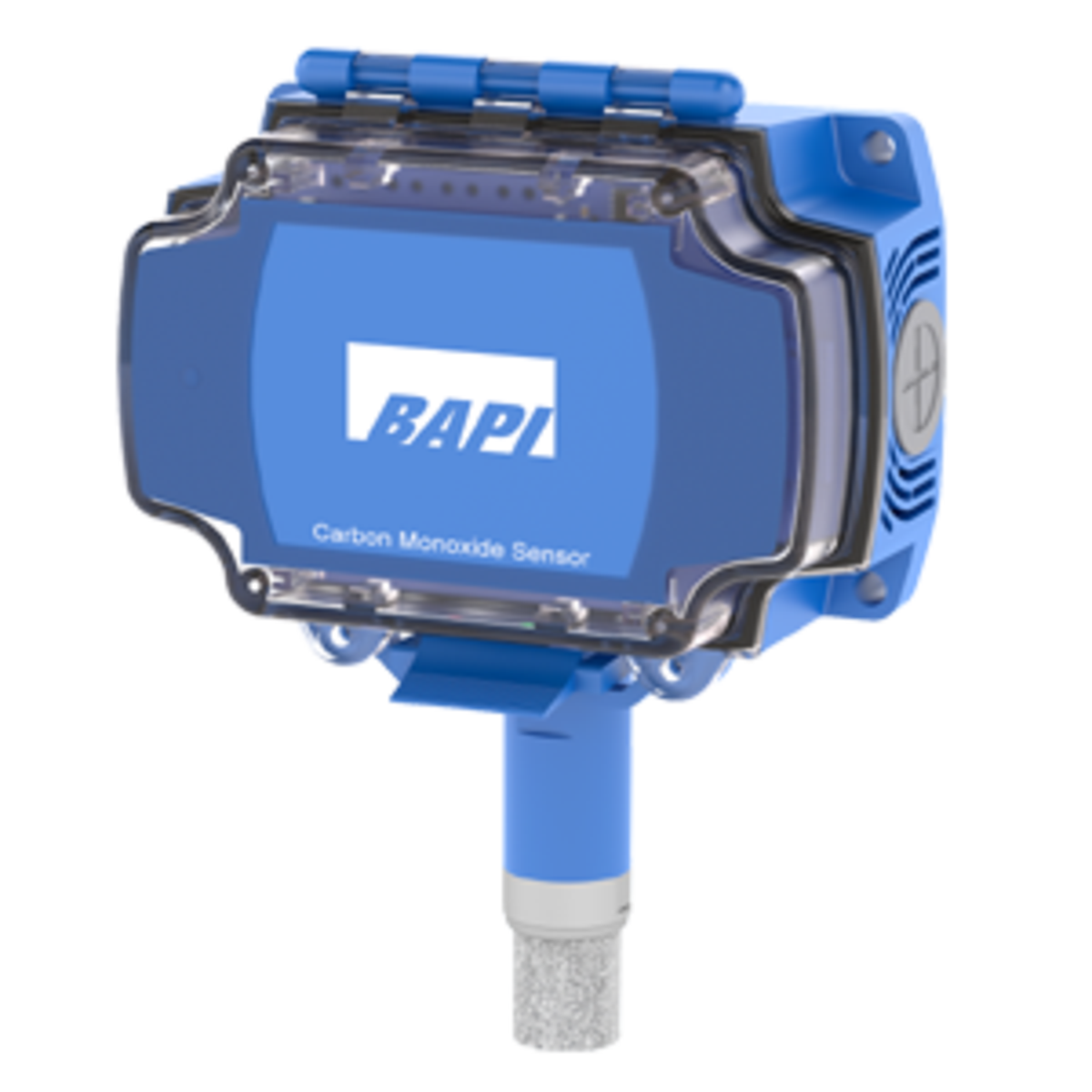

Bapi BA/BBV-CO Rough Service CO Sensor

Product Description

The BAPI BA/BBV-CO is a carbon monoxide rough service sensor that offers enhanced electrochemical sensing with accuracy at low concentrations. It features a ventilated BAPI-Box and is suited for parking ramps, equipment rooms, and warehouses. The sensor has a CO range of 0 to 500 ppm with field-selectable outputs.

• Field Replaceable Electrochemical Sensor with Self-Test
• Optional BACnet MS/TP Output of CO, Temp and Humidit
• Field Selectable Voltage Outputs

Product Highlights

The sensor includes optional humidity measurement and temperature via a thermistor. The CO, temperature, and humidity outputs are also available via BACnet MS/TP. The field-replaceable sensor element lasts approximately seven years and is self-tested daily.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/BBV-CO

Technical Specifications

• Item Number: BA/BBV-CO
• Brand: BAPI
• Configuration: Rough Service CO Sensor
• Output Type: Voltage
• Display: No
• Measurement Range: 0 - 500 ppm
• Application: Commerical Building,Industrial Site,Hospital,Mine,Aircraft
• Output Signal: Voltage
• Mount: Wall
• Power: 0 to 5 VDC, 1 to 5 VDC & BACnet Output Units, 9 to 40 VDC, 12 to 28 VAC
• CO Measurement Range: 0 to 550 ppm
• Field Wiring Terminals: Flying Leads, 20 AWG
• Response Time: <80 seconds from 10% to 90% of range
• Sensor Element Life: 7 years typical
• Field Selectable Voltage Outputs: 0 to 5, 1 to 5, 0 to 10 and 2 to 10 VDC
• Certifications: RoHS and CE
• Carbon Monoxide Sensor Accuracy: <200ppm = ±3% FS, 32 to 122°F (0 to 50°C) 201 to 500 ppm = ±5% FS, 50 to 122°F (10 to 50°C)
• Temperature Sensor Accuracy: BACnet Units: ±0.3°C from -40 to 257°F (-40 to 125°C) Thermistor Units: See Sensors section for specs
• Humidity Sensor Accuracy: ±2% RH (20% to 80%) @ 25°C, Fully Compensated
• Environmental Operation Range: Continuous: 14 to 122°F (0 to 50°C), 5 to 95% RH Noncondensing Intermittent: -40 to 131°F (-40 to 55°C), 5 to 95% RH Noncondensing
