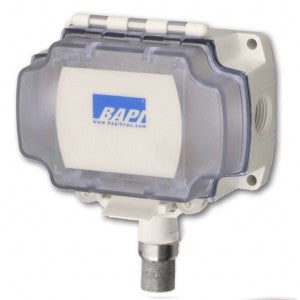

Bapi BA/10K2H200OBB Humidity Transmitter 0 to 5 VDC

Product Description

The BAPI BA/10K2H200OBB is a ±2% accuracy humidity transmitter designed for HVAC systems. It features an interchangeable output of 0 to 5 VDC and utilizes a 10K-2 thermistor sensor. Built for outside air applications, it withstands high humidity and condensation. Duct units have medical-grade closed cell foam to seal the probe insertion hole and absorb vibration.

• 2% Accuracy
• Field calibratable
• Optional temperature sensor available

Product Highlights

The BA/10K2H200OBB humidity transmitter is ideal for outdoor air humidity monitoring, economizer control, psychrometric calculations, enthalpy, dew point, and wash down applications.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/10K2H200OBB

Technical Specifications

• Sensor Element: 10K Type 2 Thermistor
• Accuracy: 2%
• Output: 0 - 5 VDC
• Power Requirements: 24 VAC,24 VDC
• Enclosure Rating: NEMA 4
• Housing Material: Poly
• Mount: OSA
• Application: Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
• Accessory: DCPA-1.2,DCP-1.5-W,T81U-XR,T85U-XR,UR
