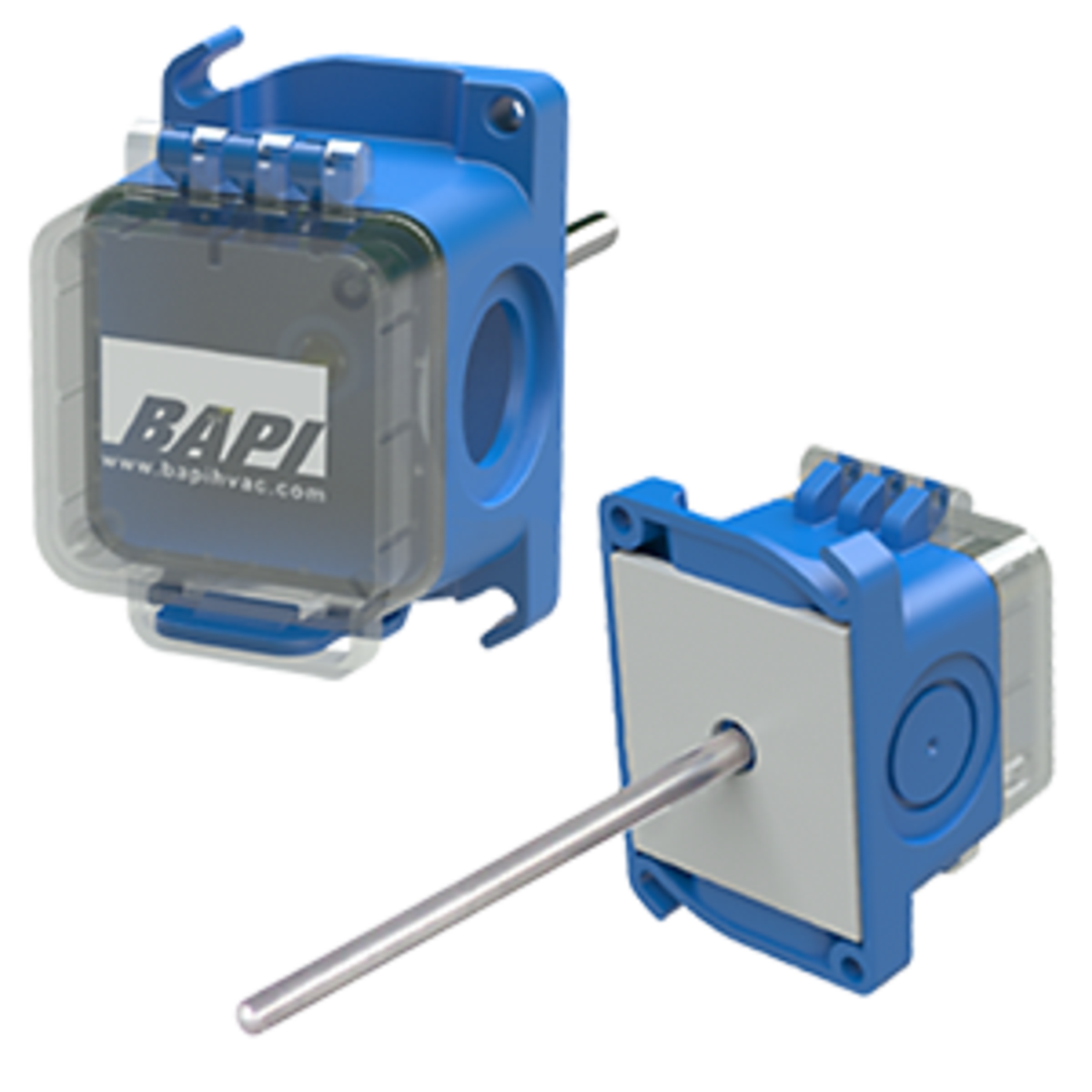

Bapi BA/10K-3-D-8-BBX Duct temperature sensor 10K Type III thermistor (8 in probe)

Product Description

BAPI BA/10K-3-D-8-BBX is a duct temperature sensor featuring a 10K Type III thermistor and an 8 in probe for HVAC duct and air handling unit applications. The sensor outputs resistance and is housed in a poly enclosure with etched Teflon leadwires and an encapsulated element for a watertight package. It is rated NEMA 1 (IP10), mounts directly to ducts, and operates from 32°F to 158°F (0°C to 70°C).

• 10K Type III thermistor sensing element with resistance output; accuracy +/-0.36°F (+/-0.2°C)
• 8 in stainless probe in poly housing with etched Teflon 22 AWG leadwires and encapsulated sensor
• BAPI-Box crossover enclosure rated NEMA 1 (IP10); designed for duct mounting and air handling units

Product Highlights

Duct-mounted 10K Type III thermistor with 8 in probe, resistance output, NEMA 1 poly enclosure, and etched Teflon leads.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/10K-3-D-8-BBX

Technical Specifications

• Brand: BAPI
• MPN: BA/10K-3-D-8-BBX
• Product Type: Duct temperature sensor
• Sensor Element: 10K Type III thermistor
• Sensor Type (Thermistor): 10 kohm Type II and Type III
• Probe Length: 8 in
• Probe Material: Stainless steel (probe)
• Housing Material: Poly
• Output Signal: Resistance
• Enclosure: BAPI-Box crossover
• Enclosure Rating: NEMA 1 (IP10)
• Application: Duct temperature, air handling unit
• Accuracy (Thermistor): +/-0.36°F (+/-0.2°C)
• Temperature Range: 32°F to 158°F (0°C to 70°C)
• Heat Dissipation: 2.7 mW/°C; 0.4 °C/mW at 0 °C
• Mounting Type: Directly to duct
• Wiring Terminations: 22 AWG etched Teflon leads
• Approvals: CE, RoHS
• Accessory: T85U-XR, T81U-XR, T91U-XR, UR
• SKU: BA/10K3D8BBX
• Enclosure/Weight (No Box): 0.5 lb (0.23 kg)
• Enclosure/Weight (J-Box): 0.65 lb (0.29 kg) for 2 x 4 J-box with 1/2 in knockouts
