Bapi BA/10K-2-PP-10 strap-on 10K-2 thermistor remote probe 10 ft leads

Product Description

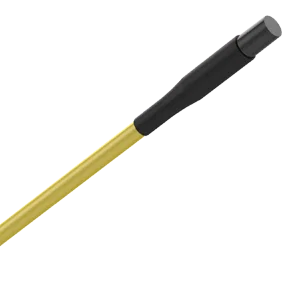

Bapi BA/10K-2-PP-10 is a strap-on remote thermistor probe featuring a 10K Type 2 thermistor element and 10 ft leads. It provides a resistance output for temperature measurement and is designed for strap-on and remote probe installations such as refrigerated cases or where immersion or duct sensors are not suitable. The stainless steel probe (approximately 1.75 in typical) is offered with FEP-jacketed or plenum-rated cable options and a -40 to 221°F range.

• 10K Type 2 thermistor element with resistance output; accuracy ±0.36°F (±0.2°C).
• 10 ft leads with FEP-jacketed or plenum-rated cable options; stainless steel probe (~1.75 in typical) for strap-on or remote mounting.
• Operating range -40 to 221°F (-40 to 105°C); stability ±0.036°C/year; enclosure and mounting options including NEMA-rated boxes; CE and RoHS approved.

Product Highlights

Strap-on remote thermistor probe, 10K Type 2 element, 10 ft plenum or FEP leads, -40 to 221°F range, resistance output.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/10K-2-PP-10
• Country of Origin: USA

Technical Specifications

• Brand: BAPI
• Manufacturer Part Number: BA/10K-2-PP-10
• Product Type: Strap-on remote probe
• Sensor Element: 10K Type 2 thermistor
• Output Signal: Resistance
• Lead Length: 10 ft (120 in)
• Cable Options: FEP-jacketed or plenum-rated leads
• Probe Material: Stainless steel (typical probe length 1.75 in)
• Temperature Range: -40 to 221°F (-40 to 105°C)
• Accuracy: ±0.36°F (±0.2°C)
• Stability: ±0.036°C per year (0.02°F per year)
• Heat Dissipation: 2.7 mW/°C; 0.4°C/mW at 0°C
• Mounting: Strap-on; direct to wall or pipe
• Wiring Terminations: 22 AWG wire, etched Teflon leads
• Enclosure Rating: Options include NEMA 4 (IP66), NEMA 3R (various materials) per BAPI box options
• Approvals: CE, RoHS
• Manufacturer: Building Automation Products, Inc. (BAPI)
• Country Of Origin: USA
