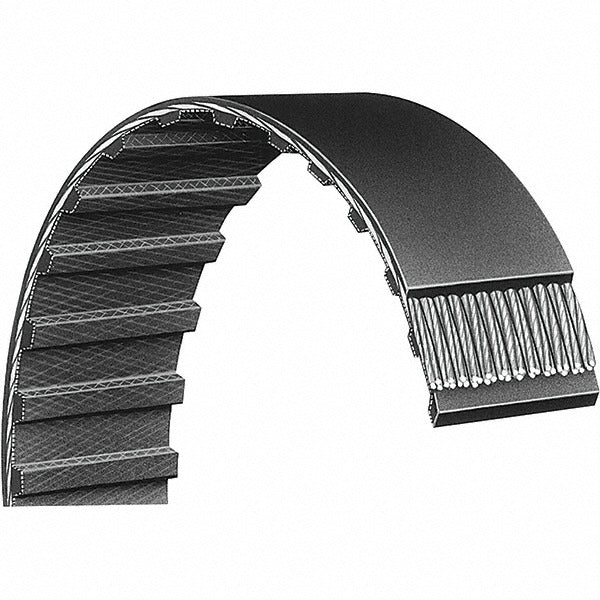

Bando 700H100G Timing Belt Section H 1in 140 Teeth Neoprene

Product Description

The BANDO 700H100G is a Series H trapezoidal timing belt designed for precise synchronous power transmission in industrial and HVAC drive applications. Constructed from neoprene with a fiberglass cord reinforcement, this belt delivers consistent pitch accuracy and resistance to heat, oil, and environmental exposure. It measures 70 inches in outside length, 1 inch (25.4 mm) in width, and 0.17 inches in height, with 140 trapezoidal teeth spaced on the standard H-series pitch. Rated for operating temperatures from -22 degrees F to 194 degrees F, it suits a wide range of mechanical drive systems where belt slip and timing drift are unacceptable.

This belt is used in synchronous drive systems across commercial HVAC equipment, industrial machinery, and other applications requiring accurate rotational timing between shafts. Series H belts are a common standard in blower assemblies, conveyor drives, and pump drive trains where load consistency and minimal stretch are critical. Licensed mechanical technicians and industrial maintenance professionals handle installation in both new equipment builds and replacement service scenarios.

Key Features

• Series H trapezoidal tooth profile for positive synchronous drive engagement
• Neoprene construction resists oil, heat, and moderate chemical exposure
• Fiberglass cord reinforcement minimizes belt stretch under load
• 140 teeth across a 70-inch outside length for accurate pitch repetition
• Operating range of -22 degrees F to 194 degrees F suits demanding environments
• 1-inch (25.4 mm) width fits standard Series H pulley grooves

Compatibility

Designed as an OEM-style replacement timing belt for synchronous drive systems using Series H belt standards with a 1-inch width and 140-tooth count. Belt number 700H100 is the standard industry reference for this specification.

Installation Notes

Installation should be performed by a qualified mechanical or HVAC technician. Disengage and lock out all power to the drive system before removing the old belt or accessing pulleys. Verify pulley alignment and sheave condition before fitting the replacement belt, as misalignment accelerates tooth wear. Do not pry or force the belt over pulley flanges; reduce center distance to allow proper seating, then restore tension per the equipment manufacturer's specification.
