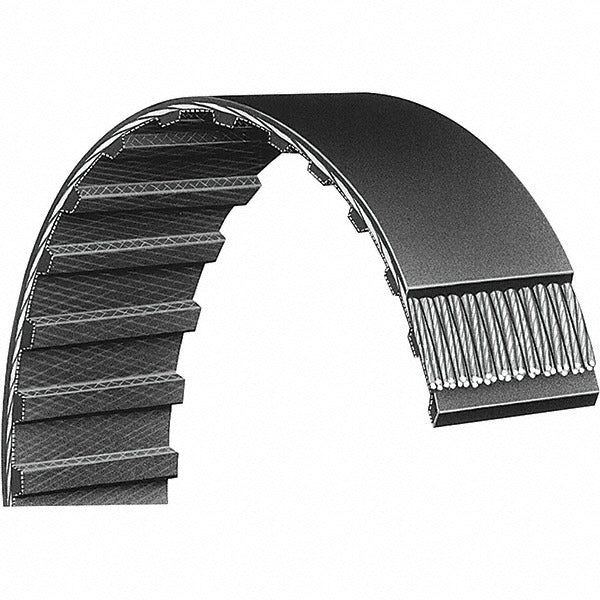

Bando 480H100G H Section Timing Belt 1 in 48 in 96 Teeth

Product Description

The BANDO 480H100G is an H-section synchronous timing belt used in mechanical power transmission drives. It features a neoprene construction with a fiberglass tensile cord, delivering reliable torque transfer with minimal stretch over service life. The belt runs at 48 inches pitch length with 96 trapezoidal teeth and a 1-inch working width. It is rated for operating temperatures from -22 degrees F to 194 degrees F, making it suitable for demanding industrial and equipment applications. HVAC and mechanical equipment technicians install this belt type on blower assemblies, air handlers, and other belt-driven mechanical systems requiring precise timing or synchronous motion.

H-section timing belts are commonly used in light industrial equipment, HVAC blower drives, commercial air handling units, and general-purpose machinery requiring positive, no-slip power transmission. The 480H100G is a direct replacement format compatible with any drive system specifying a belt number 480H100 with H-section geometry. Installers working on belt-driven blower assemblies or OEM equipment that calls out H-series synchronous belts will find this belt a direct dimensional match.

Key Features

• H-section trapezoidal tooth profile for positive, no-slip synchronous drive
• Neoprene construction resists oil, heat, and environmental exposure
• Fiberglass tensile cord minimizes stretch and maintains pitch accuracy under load
• Wide operating temperature range: -22 degrees F to 194 degrees F
• 96 teeth across a 48-inch pitch length for accurate indexing
• 1-inch belt width suitable for moderate torque drive applications

Compatibility

Designed as a direct OEM-style replacement for any drive system specifying belt number 480H100 in H-section timing belt geometry. Confirm pulley groove profile and center distance before installation.

Installation Notes

H-section timing belts are installed by qualified mechanical technicians or HVAC service professionals. Always de-energize and lock out the equipment before removing drive guards or accessing the belt. Do not pry or force the belt over pulley flanges — adjust center distance to allow proper belt seating. Inspect mating pulleys and sprockets for wear before installing a new belt, as worn grooves will reduce service life.
