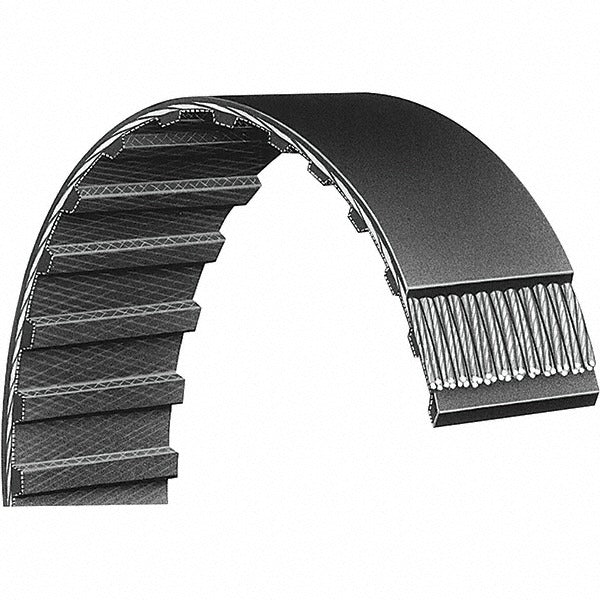

Bando 367L050G Timing Belt L Section 98 Teeth 0.5 in

Product Description

The BANDO 367L050G is an L-section timing belt designed for synchronous power transmission in light industrial, HVAC, and mechanical drive applications. Built from neoprene with a fiberglass tension cord, this belt delivers consistent pitch accuracy and resistance to heat, oil, and abrasion. It carries a pitch length of 36.75 inches, a working width of 0.5 inches, and 98 trapezoidal teeth for positive engagement with matching L-section sprockets. Rated for operating temperatures from -22 degrees F to 194 degrees F, it suits both indoor and outdoor mechanical systems. This belt is installed by HVAC technicians, maintenance mechanics, and industrial service professionals.

The 367L050G fits synchronous belt drive systems using the standard L-section tooth profile. Typical applications include blower drives, fan assemblies, pump drives, and light-duty conveyor systems found in residential and commercial HVAC equipment, as well as general industrial machinery. The trapezoidal tooth geometry ensures no-slip power transfer, making it appropriate wherever precise shaft-to-shaft timing is required. It is a direct replacement for drives originally specifying belt number 367L050.

Key Features

• L-section trapezoidal tooth profile for positive, no-slip synchronous drive
• Neoprene construction resists heat, oil, and abrasion
• Fiberglass tension cord maintains pitch accuracy under load
• 98 teeth with a 36.75-inch pitch length for precise drive geometry
• Operating range of -22 degrees F to 194 degrees F suits varied environments
• 0.5-inch belt width fits standard L-section sprockets

Compatibility

Designed as a direct replacement for drives specifying belt number 367L050 using the standard Series L tooth profile and sprocket dimensions.

Installation Notes

Installation should be performed by a qualified mechanic or HVAC technician. Always de-energize and lock out the drive system before removing or installing the belt. Do not pry the belt onto sprockets with tools that could damage the teeth or cord; use the manufacturer-recommended belt tension procedure for the specific drive application. Verify sprocket alignment and center distance before returning the system to service.
