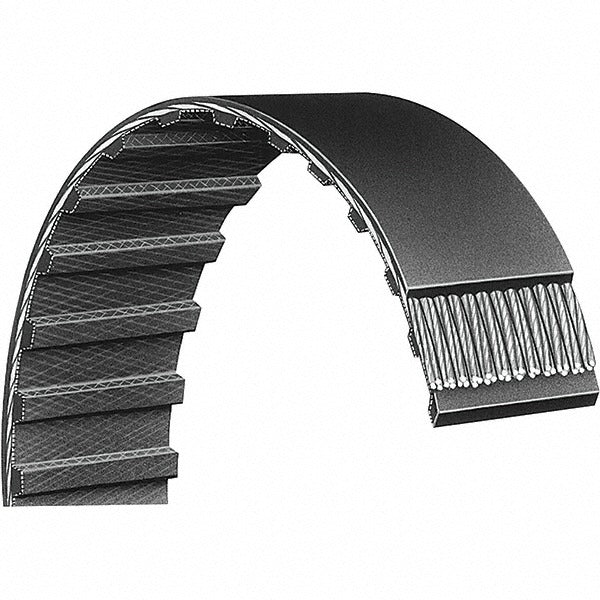

Bando 330H100G Timing Belt Section H 66 Teeth Neoprene

Product Description

The BANDO 330H100G is a Series H timing belt designed for synchronous power transmission in industrial and mechanical drive systems. It features 66 trapezoidal teeth with a 0.5-inch pitch and a 33.0-inch pitch length, delivering precise timing and positive drive without slip. The belt measures 1.0 inch wide and 0.17 inches in height, constructed from neoprene with a fiberglass tension cord for dimensional stability under load. This belt is installed by millwrights, maintenance technicians, and mechanical contractors in equipment requiring accurate shaft-to-shaft timing.

The 330H100G fits applications where Series H timing belts are specified, including conveyor drives, HVAC blower assemblies, pump drives, and light industrial machinery. The neoprene compound handles a working temperature range of -22 degrees F to 194 degrees F, making it suitable for both indoor climate-controlled environments and moderate-temperature mechanical rooms. It is a direct replacement for drives sized to the 330H100 belt number specification.

Key Features

• Series H trapezoidal tooth profile for positive, no-slip synchronous drive
• 66 teeth at 0.5-inch pitch over a 33.0-inch pitch length
• Neoprene construction with fiberglass cord for stretch resistance and dimensional stability
• 1.0-inch belt width and 0.17-inch height suit standard Series H drive pulleys
• Operating range from -22 degrees F to 194 degrees F
• Direct replacement for 330H100 belt number applications

Compatibility

Designed as a direct replacement for drives specifying belt number 330H100 in Series H timing belt applications. Fits standard Series H pulleys sized for a 1.0-inch wide belt with 0.5-inch pitch.

Installation Notes

Installation should be performed by a qualified technician with the drive system fully de-energized and locked out per applicable LOTO procedures before belt removal. Never pry or force the belt onto sprockets with excessive lateral stress, as this can damage the tension cord. Verify pulley alignment and proper center distance before tensioning, following the drive manufacturer's specifications for deflection or tension. Inspect mating sprockets for wear before installing a new belt.
