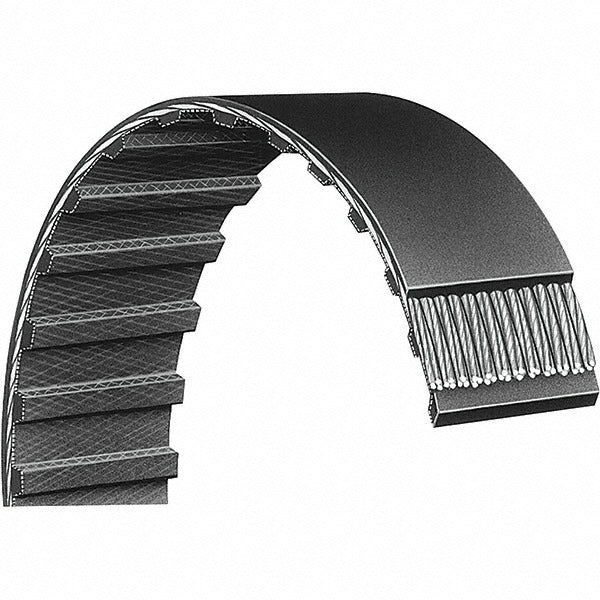

Bando 270H100G H Section Timing Belt 1 Inch 54 Teeth

Product Description

The BANDO 270H100G is an H-section synchronous timing belt designed for precision power transmission in industrial and commercial drive systems. It measures 27.0 inches in pitch length, 1.0 inch wide, and 0.17 inches in height, with 54 trapezoidal teeth spaced at a 0.50-inch pitch. The belt is constructed from black neoprene with a fiberglass tension cord, delivering consistent tooth engagement and resistance to stretching under cyclic load. It is suitable for use across a broad temperature range of -22 degrees F to 194 degrees F. HVAC equipment technicians, millwrights, and mechanical service professionals install this belt as a direct OEM-style replacement in timing-critical drive applications.

The 270H100G fits equipment using Series H belt drives requiring a 27.0-inch pitch length and 1.0-inch belt width. Typical applications include blower assemblies, conveyor drives, pump drives, and other synchronous power transmission systems found in light industrial and commercial HVAC or mechanical equipment. The trapezoidal tooth profile is standard to H-series drive systems and mates with corresponding H-section pulleys and sprockets. No input data was provided naming specific equipment models or system families compatible with this belt beyond the Series H designation.

Key Features

• H-section trapezoidal tooth profile for positive, no-slip timing drive engagement
• 54 teeth at 0.50-inch pitch for accurate indexing and synchronization
• Neoprene construction resists oil, heat, and environmental degradation
• Fiberglass tension cord minimizes belt stretch and maintains pitch under load
• Operating range of -22 degrees F to 194 degrees F suits indoor mechanical environments
• 1.0-inch width and 27.0-inch pitch length match standard H-series drive geometry

Compatibility

Designed as an OEM-style replacement for Series H synchronous drive systems requiring a 27.0-inch pitch length and 1.0-inch belt width with trapezoidal tooth form. No specific equipment model numbers or part cross-references were provided in the input data.

Installation Notes

Belt replacement should be performed by a qualified technician after de-energizing and locking out all power to the drive system per applicable LOTO procedures. Remove belt guards before accessing the drive; inspect pulleys and sprockets for wear, misalignment, or debris before installing the new belt. Never force the belt over pulley flanges with a pry tool, as this can damage the tension cord. Verify correct belt tension according to the equipment manufacturer's specifications before returning the drive to service.
