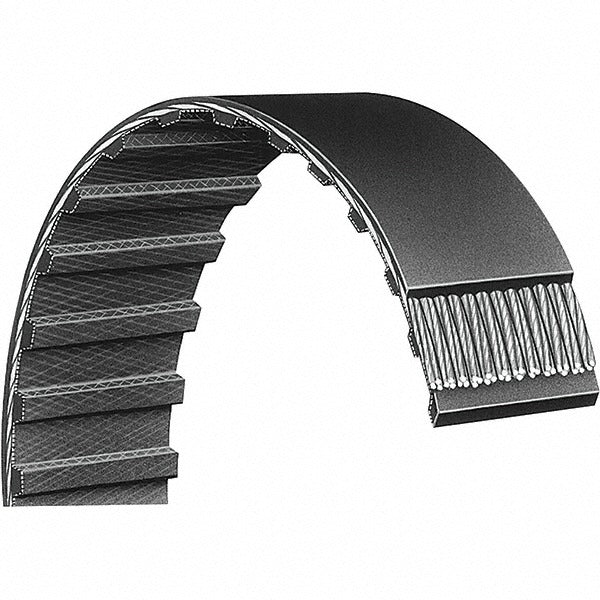

Bando 240L075G Timing Belt L Section 64 Teeth

Product Description

The BANDO 240L075G is an L-section synchronous timing belt designed for power transmission applications that require precise, slip-free drive performance. Constructed from neoprene with a fiberglass tensile cord, this belt delivers consistent pitch engagement across all 64 trapezoidal teeth. It carries a pitch length of 24 inches and a belt pitch of 0.375 inches, making it a direct fit in applications where belt-to-sprocket timing is critical. The 0.75-inch width and 0.138-inch height conform to standard Series L dimensions. HVAC technicians, industrial maintenance techs, and mechanical contractors regularly work with belts in this series on blower drives, conveyor systems, and light-duty power transmission equipment.

This belt is suited for use in residential and light commercial equipment where an L-section timing belt is specified by the OEM. Typical applications include fan and blower assemblies, small conveyor drives, and other synchronous power transmission setups that require a standardized L-series replacement. The neoprene compound and fiberglass cord construction allow operation across a wide temperature range, from -22 degrees F to 194 degrees F, making it appropriate for both indoor mechanical rooms and outdoor-rated equipment enclosures.

Key Features

• Series L section with 0.375-inch belt pitch for synchronous, no-slip power transmission
• 64 trapezoidal teeth for positive drive engagement with matching L-series sprockets
• Neoprene construction resists oil, heat, and environmental exposure
• Fiberglass tensile cord maintains dimensional stability under load
• Operating temperature range: -22 degrees F to 194 degrees F
• Lightweight at 0.088 pounds, suitable for compact drive assemblies

Compatibility

Designed as an OEM-style replacement for any drive system specifying a Series L timing belt with a 240L075 belt number, 64 teeth, 0.75-inch width, and 24-inch pitch length.

Installation Notes

Installation is typically performed by a qualified mechanical or HVAC technician. Always de-energize and lock out the equipment before removing or installing drive belts. Verify sprocket alignment and center distance before tensioning the replacement belt. Do not force the belt over sprocket flanges, as this can damage the tensile cord and reduce service life.
