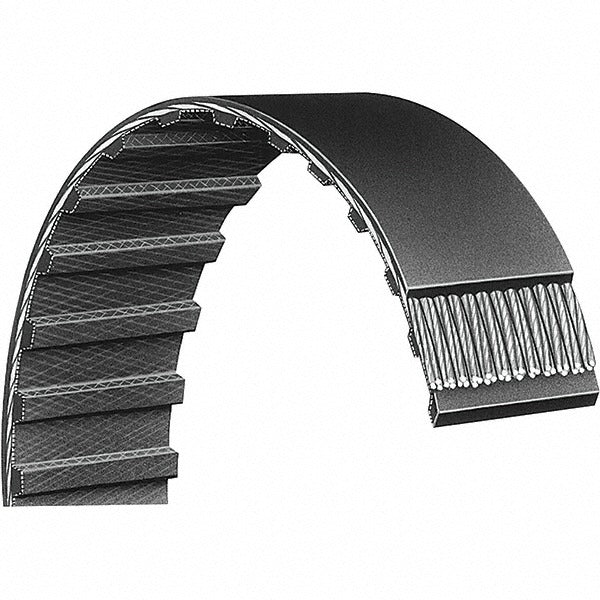

Bando 225L100G Timing Belt Section L 1 Inch 60 Teeth

Product Description

The BANDO 225L100G is a Section L synchronous timing belt designed for precision power transmission in industrial and mechanical drive applications. Constructed from neoprene with a fiberglass cord, it delivers consistent tooth engagement and resistance to heat, oil, and wear over extended service cycles. The belt measures 22.5 inches in pitch length with a 0.375-inch pitch and features 60 trapezoidal teeth. At 1 inch wide and 0.138 inches in belt height, it fits standard Section L drive configurations. Licensed trade technicians and mechanical service professionals install this belt in OEM replacement and retrofit scenarios where dimensional accuracy and material durability are required.

This belt suits residential and light commercial mechanical systems as well as industrial drive assemblies that call for a Series L synchronous belt. Typical applications include HVAC blower assemblies, pump drives, conveyor systems, and other equipment using toothed pulley arrangements in the Section L pitch family. The neoprene construction handles a working temperature range of -22 degrees F to 194 degrees F, making it suitable for both indoor climate-controlled environments and moderate outdoor or mechanical room conditions.

Key Features

• Section L series with 0.375-inch pitch and 60 trapezoidal teeth for precise synchronous drive engagement
• Neoprene construction resists heat, oil, and environmental degradation across a wide temperature range
• Fiberglass cord provides high tensile strength and dimensional stability under load
• 1-inch belt width fits standard Section L pulley configurations without modification
• 22.5-inch pitch length and 0.138-inch belt height conform to Series L OEM dimensional standards
• Black finish; sold individually as a single belt per package

Compatibility

Designed as an OEM-style replacement for Section L series synchronous drive systems requiring a 225L100 belt number with 60 teeth and a 1-inch width.

Installation Notes

Installation is typically performed by a qualified mechanical or HVAC technician. De-energize all power to the drive system and relieve any tension from the existing belt before removal. Verify pulley alignment and confirm the replacement belt tooth count, pitch, and width match the drive specifications before seating the belt. Do not force the belt over pulley flanges; adjust center distance to allow proper installation without overstressing the cord.
