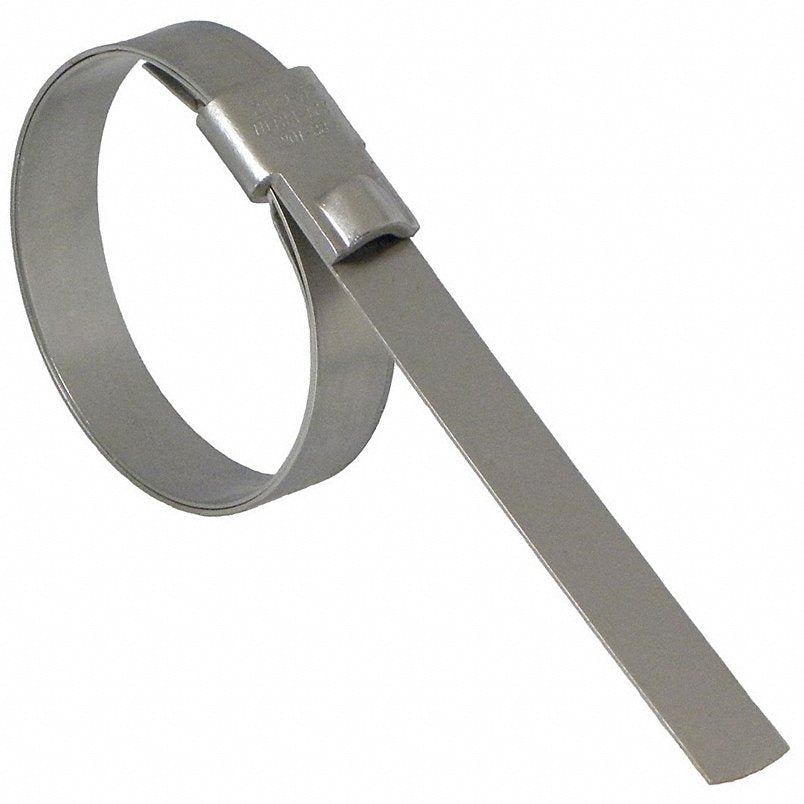

Band-it ul2179 Band Clamp 201 Ss 2-6.5 in Slotted-lock

Product Description

The BAND-IT ul2179 is a heavy-duty slotted-lock band clamp constructed from 201 stainless steel throughout the band, buckle, and closure. It accepts clamping diameters from 2 inches up to 6.5 inches, making it a versatile fit for a wide range of hose, pipe, and bundle applications. The band is 0.75 inches wide and 0.03 inches thick, double-wrapped for increased holding strength. Installation is performed with a powered clamping tool for fast, consistent fastening. The clamp meets IATF 16949 standards and provides reliable performance in high-pressure environments where corrosion resistance and vibration resistance are required.

This clamp is suited for industrial, mechanical, and fluid system applications where a secure, permanent band connection is needed. The slotted-lock closure and reinforced buckle design hold firmly under pressure and vibration, making the ul2179 appropriate for use in automotive, HVAC, plumbing, and general industrial installations where stainless steel hardware is specified.

Key Features

• 201 stainless steel band, buckle, and closure for uniform corrosion resistance
• Slotted-lock buckle with reinforced design for high-strength retention
• Double-wrapped band construction increases clamping force
• Clamping range: 2 inches to 6.5 inches outside diameter
• Band width of 0.75 inches and thickness of 0.03 inches for rigid grip
• Meets IATF 16949 quality management standards

Compatibility

Designed as an OEM-style replacement or new-installation band clamp for hose, tubing, pipe, and bundle applications requiring a slotted-lock stainless steel clamp within a 2 to 6.5 inch outside diameter range.

Installation Notes

A powered clamping tool is required for proper installation of this buckle-on clamp style. Ensure the workpiece is clean and properly seated within the band before tightening to achieve full clamping force. Shut off fluid flow and depressurize the line before removing or replacing any existing clamp. Follow applicable mechanical and plumbing codes for the specific installation environment.

Technical Specifications

• Band Material: 201 Stainless Steel
• Buckle Material: 201 Stainless Steel
• Closure Material: 201 Stainless Steel
• Clamp Type: Slotted-Lock
• Minimum Clamping Diameter: 2 inches
• Maximum Clamping Diameter: 6.5 inches
• Band Width: 0.75 inches
• Band Thickness: 0.03 inches
• Band Wrapping: Double Wrapped
• Resistance Properties: Corrosion Resistant, Vibration Resistant
• Standards: IATF 16949
• Country of Origin: Varies (subject to change)

Standard Information

• Brand: BAND-IT
• Manufacturer Part Number: ul2179
