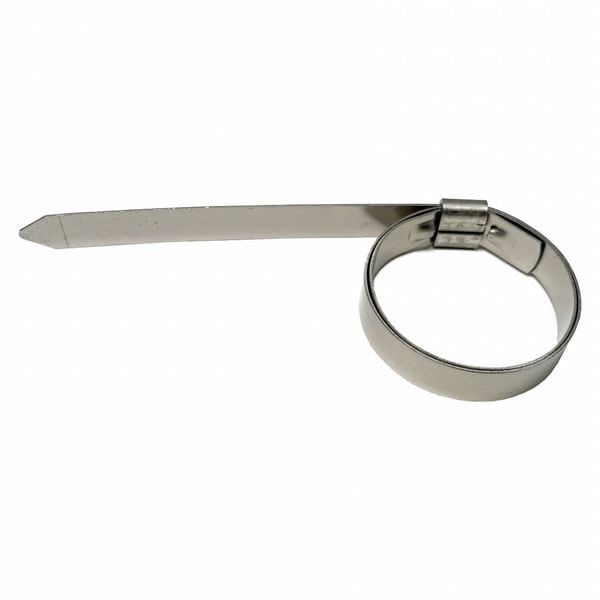

Band-it js2129 Lip-lock Band Clamp Stainless Steel

Product Description

The BAND-IT js2129 is a preformed Lip-Lock band clamp engineered for secure, leak-resistant connections on hose assemblies in demanding industrial and corrosive environments. Constructed from Grade 201 stainless steel with a double-wrapped band, this clamp delivers 360 degrees of uniform clamping pressure across the hose surface. The band measures 0.75 inches wide and 0.03 inches thick. Unlike punch-style buckle designs, the Lip-Lock mechanism uses a lip wrap buckle that eliminates the risk of fitting damage during installation. A low-profile buckle design reduces snag hazards when dragging or repositioning industrial hoses. This clamp is installed once and is not designed for reuse.

This clamp is suited for hose assembly applications where corrosion resistance is a priority, including wet, chemical-exposed, or outdoor industrial environments. It fits outside diameters from 1.5 inches up to 3.25 inches, with a maximum inside diameter of 3.5 inches. The smooth interior contact surface prevents leak paths and distributes clamping load evenly around the fitting. Compatible install tools include C00169, C00269, J00169, J05069, S35099, and S75099.

Key Features

• Lip-Lock buckle design eliminates punch-style buckle damage risk to hose fittings
• Double-wrapped band provides superior clamping strength and durability
• Smooth inside diameter ensures 360-degree uniform clamping surface and prevents leak paths
• Grade 201 stainless steel band and buckle offer corrosion resistance in harsh environments
• Low-profile buckle reduces snag and injury risk during hose handling
• Junior Series design with compatible tooling for field installation

Compatibility

Designed for hose assembly applications requiring outside diameters between 1.5 inches and 3.25 inches. Compatible install tools: C00169, C00269, J00169, J05069, S35099, and S75099.

Installation Notes

Installation is performed using BAND-IT-compatible banding tools; refer to the compatible tool list for approved options. Power down or depressurize any system before installing or inspecting clamps on active hose assemblies. This clamp is a single-use item and should not be removed and reinstalled. Follow applicable industrial and plumbing codes for hose assembly and clamping requirements.

Technical Specifications

• Band Clamp Type: Lip-Lock
• Band Material: Stainless Steel, Grade 201
• Band Material Finish: Stainless Steel
• Band Width: 0.75 inches
• Band Thickness: 0.03 inches
• Band Wrapping: Double Wrapped
• Buckle Material: Stainless Steel, Grade 201
• For Minimum Outside Diameter: 1.5 inches
• For Maximum Outside Diameter: 3.25 inches
• Clamp Maximum Inside Diameter: 3.5 inches
• Resistance Properties: Corrosion Resistant
• Reusable: No
• Series: Junior
• For Use On: Hose Assembly
• Compatible Install Tools: C00169, C00269, J00169, J05069, S35099, S75099
• Country of Origin: Multiple

Standard Information

• Brand: BAND-IT
• Manufacturer Part Number: js2129
