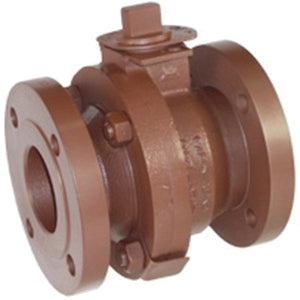

Balon 4R-F-12-FF F-Series Class 125 Ductile Iron Flat Face Floating Ball Valve

Product Description

The Balon 4R-F-12-FF is a F-Series Class 125 ductile iron flat face floating ball valve. It is designed for reliable operation in various fluid handling applications, thanks to its durable construction and efficient design.

• Constructed with high-grade annealed ductile iron for corrosion resistance and yield strength
• Includes fire safe design features
• Maintenance-free sealing, eliminating lubrication needs

Product Highlights

This valve enhances safety and minimizes maintenance issues commonly associated with traditional designs.

Product Information

Standard Information

• Brand: Balon
• Manufacturer: Balon Corporation

Technical Specifications

• Ball Material: Carbon Steel
• Connection Size: 4 inches
• Connection Type: Flanged
• Dimension: 9 inches L
• Flow Coefficient: 525 Cv
• Item Name: Floating Ball Valve
• Material Specifications: ASTM A395
• Material: Ductile Iron
• Operator Type: Carbon Steel/Ductile Iron Lever Handle
• Pressure Class: Class 125
• Pressure Rating: 200 psi
• Seat Material: Nylon
• Series: F
• Stem Material: Carbon Steel
• Type: Flat Face
