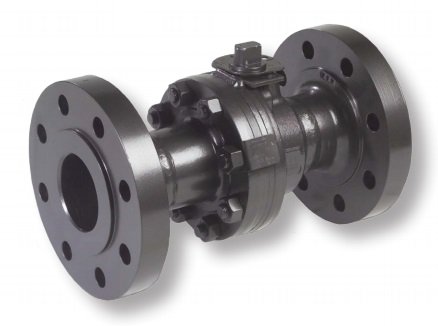

Balon 3F-F63N-RF Series F 3 Full Port R.F. ANSI 600 1480# WP Steel Ball Valve

Product Description

The Balon Corporation 3F-F63N-RF is a steel ball valve designed for a range of applications in industrial settings. This valve features a lever handle actuator for easy operation. The valve is constructed from carbon steel, providing strength and durability. The nominal size of this valve is three inches, and it has a pressure class rating of 600 lb.

• Full port design allows for high flow capacity.
• Temperature rating ranges from negative twenty to two hundred twelve degrees Fahrenheit.
• Manufactured to ANSI standards for reliable performance.

Product Highlights

This steel ball valve is built for high-pressure applications and is suitable for industrial processes that require robust materials and reliable sealing.

Product Information

Standard Information

• Manufacturer: Balon Corporation
• Min Order Quantity: 1

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Carbon Steel
• End Style: Raised Face
• Nominal Size: 3 inches
• Pressure Class: 600 lb
• Pressure Rating: 1480 psi
• Series: Series F
• Temperature Rating: -20 to 212 degrees F
• Trim Material: Stainless Steel
• Type: Floating
