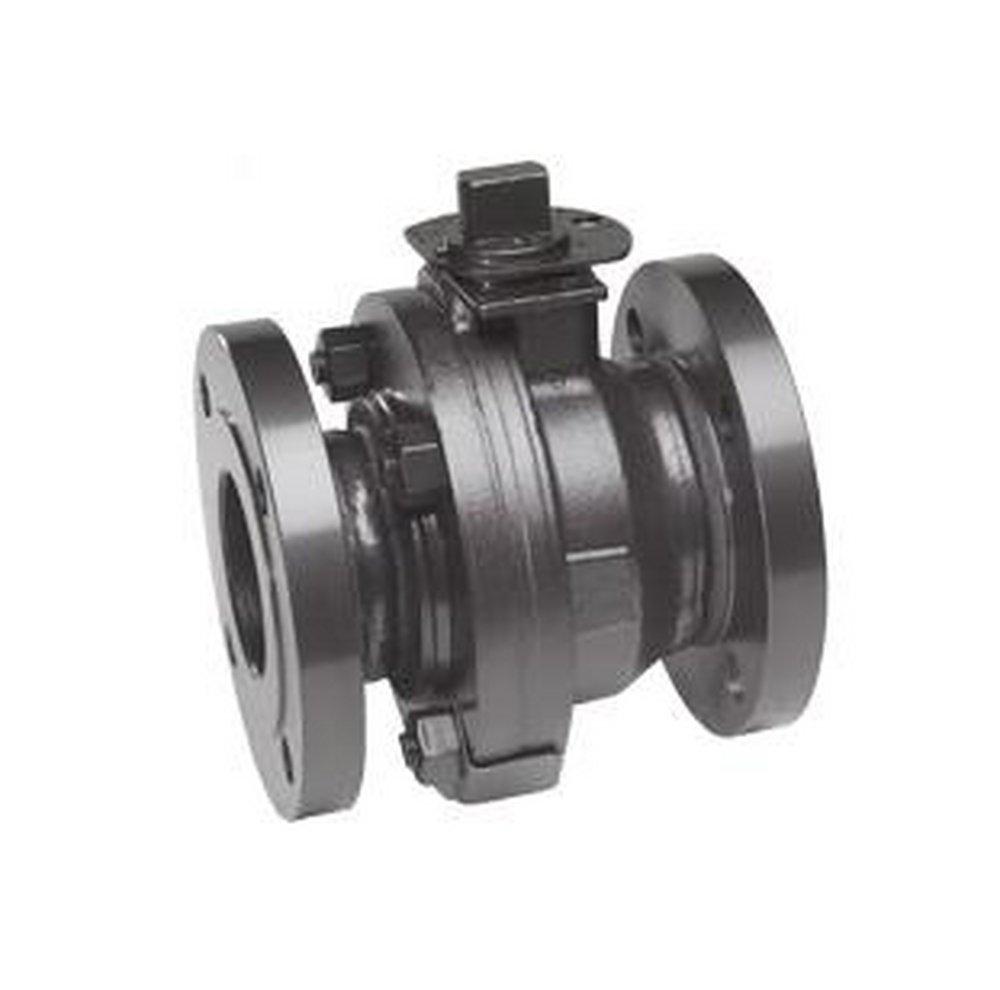

Balon 3F-F13N-RF Series F 3 Full Port R.F. ANSI 150 285# WP Steel Ball Valve

Product Description

Balon Corporation offers the 3F-F13N-RF, a series F three-inch full port R.F. ANSI 150 285# working pressure steel ball valve. This valve is designed for reliable shut-off in various industrial applications. The construction material is carbon steel which provides durability. The valve features a lever handle actuator for easy operation and a stainless steel trim for improved performance.

• Carbon steel body with stainless steel trim
• Full port design for maximum flow
• Rated for a pressure class of 150 lb and a pressure rating of 285 psi

Product Highlights

This ball valve is suitable for high-pressure applications, capable of operating in temperature ranges from negative twenty to two hundred twelve degrees Fahrenheit. Its raised face end style ensures a secure connection.

Product Information

Standard Information

• Manufacturer: Balon Corporation
• Brand: BALON
• Part #: 90634
• Min Order Qty: 1
• Availability: In Stock

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Carbon Steel
• Domestic/Import: Domestic
• End Style: Raised Face
• Nominal Size: 3 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Series: Series F
• Temperature Rating: -20 to 212 deg F
• Trim Material: Stainless Steel
• Type: Floating
