BALL VALVE W-0555134 BALL VALVE 2 1/2 Full Port Lead Free Brass Ball Valve

Product Description

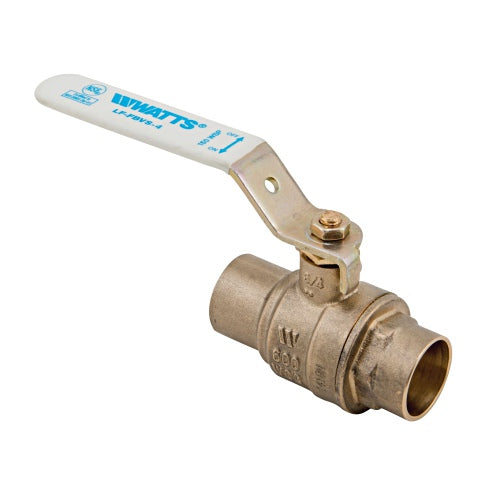

The BALL VALVE W-0555134 is a two-piece, full port, lead-free brass ball valve. It is designed for use with various liquids and gases in both commercial and industrial settings. This valve features a lead-free copper silicon alloy body and solder end connections. The blowout-proof stem is bottom-loaded for added safety.

• Made with lead-free materials.
• Includes a virgin PTFE seat and thrust washer.
• Adjustable stem packing seal.

Product Highlights

This valve ensures reliable performance in high-pressure applications.

Product Information

Standard Information

• Brand: Watts
• Part Number: 0555134

Technical Specifications

• Inlet/Outlet Connection Size: 2.5 inches
• Inlet Connection Size-Metric: 60 mm
• Connection Type: Socket
• Connection Method: Sweat
• Port Type: Full
• Handle Style: Lever
• Valve Style: 2-piece
• Body Material: Lead Free Copper Silicon Alloy Brass
• Ball Material: Chrome Plated Brass
• Seat Material: Virgin PTFE
• Pressure Rating: 400 psi (27.6 bar) WOG non-shock
• Temperature Range: -40°F to 400°F (-40°C to 204°C)
