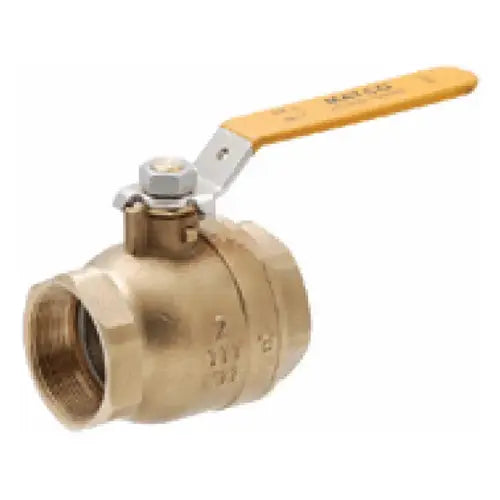

Ball Valve 757T07LF Lead Free Brass Ball Valve

Product Description

The Ball Valve 757T07LF is a lead-free brass ball valve designed for reliable performance in various applications. This valve features a full port design that ensures maximum flow. It includes a blowout-proof stem and PTFE seats, making it suitable for use in potable water systems. The valve conforms to MSS-SP-110 specifications and has threaded ends that meet ASME B1.20.1 standards.

• Full port design for increased flow capacity.
• Blowout-proof stem for enhanced safety.
• Threaded end connections for easy installation.

Product Highlights

This ball valve is suited for gas, oil, and water applications. It meets various industry standards and certifications, ensuring safe usage in both residential and commercial settings.

Product Information

Standard Information

• Brand: Ball Valve
• MPN: 757T07LF

Technical Specifications

• Material: Forged Brass
• End Connection: FIPT
• Size: 1.5 inches
• Valve Type: Ball Valve
• Pressure Rating: 600 psi
• Seat Material: PTFE
• Valve Port Opening: Full Port
• Valve Stem: Blowout-proof
• Handle Material: Carbon Steel
• Approvals: UL/FM, NSF, CSA
• Standards: ASME B1.20.1, MSS-SP-110
• ISO: ISO 9001
• Application: Gas, Oil, Water
• End Connection 1: Threaded
• End Connection 2: Threaded
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Lead Law Compliant: Yes
• ANSI: ANSI Z21.15
• ASME: ASME B1.20.1, ASME B16.33, ASME B16.44
• NSF Certified: Yes
• UL Listed: Yes
• FM Approved: Yes
• CSA Certified: CSA 9.1
